You have to calculate and present the following items based on the given flow net in the next page: 1. Uplift pressure d

[answerhappygod]

You Have To Calculate And Present The Following Items Based On The Given Flow Net In The Next Page 1 Uplift Pressure D 1 (83.46 KiB) Viewed 30 times

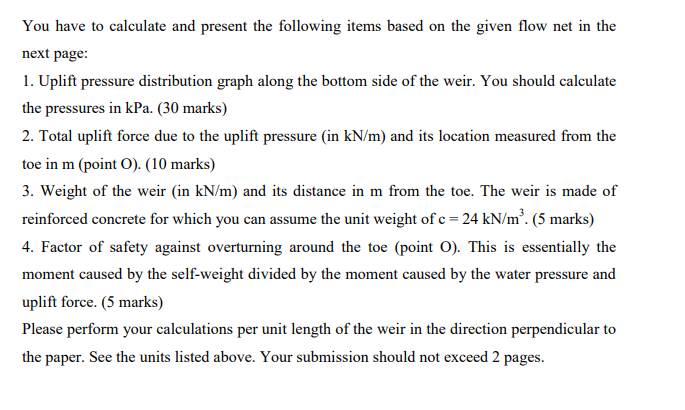

You have to calculate and present the following items based on the given flow net in the next page: 1. Uplift pressure distribution graph along the bottom side of the weir. You should calculate the pressures in kPa. (30 marks) 2. Total uplift force due to the uplift pressure (in kN/m) and its location measured from the toe in m (point O). (10 marks) 3. Weight of the weir (in kN/m) and its distance in m from the toe. The weir is made of reinforced concrete for which you can assume the unit weight of c= 24 kN/m”. (5 marks) 4. Factor of safety against overturning around the toe (point 0). This is essentially the moment caused by the self-weight divided by the moment caused by the water pressure and uplift force. (5 marks) Please perform your calculations per unit length of the weir in the direction perpendicular to the paper. See the units listed above. Your submission should not exceed 2 pages.
