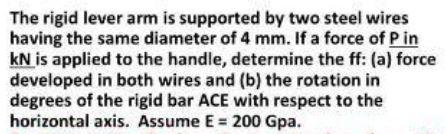

The rigid lever arm is supported by two steel wires having the same diameter of 4 mm. If a force of Pin KN is applied to the handle, determine the ff: (a) force developed in both wires and (b) the rotation in degrees of the rigid bar ACE with respect to the horizontal axis. Assume E = 200 Gpa.
450mm 150 mm 151 mm WOOL
