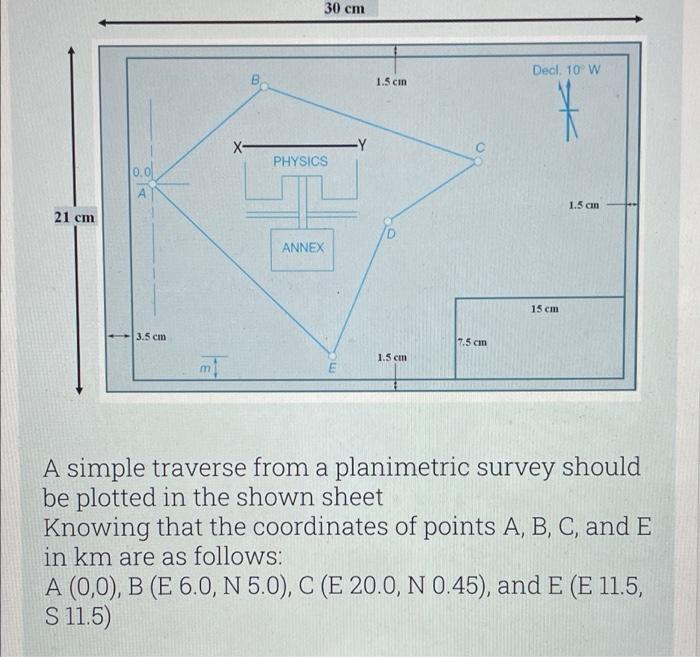

30 cm Decl. 10W B 1.5 cm X- PHYSICS 0.0 А 1.5 cm 21 cm ANNEX 15 cm 3.5 cm 7.5 cin 1.5 cm A simple traverse from a planimetric survey should be plotted in the shown sheet Knowing that the coordinates of points A, B, C, and E in km are as follows: A (0,0), B (E 6.0, N 5.0), C (E 20.0, N 0.45), and E (E 11.5, S 11.5)

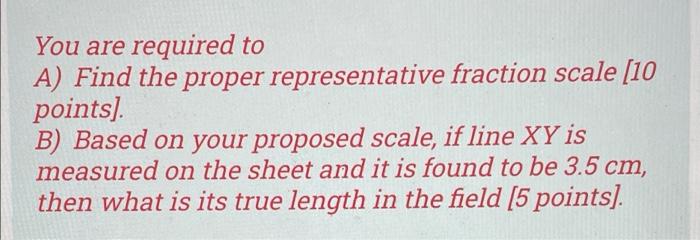

You are required to A) Find the proper representative fraction scale [10 points] B) Based on your proposed scale, if line XY is measured on the sheet and it is found to be 3.5 cm, then what is its true length in the field [5 points)
