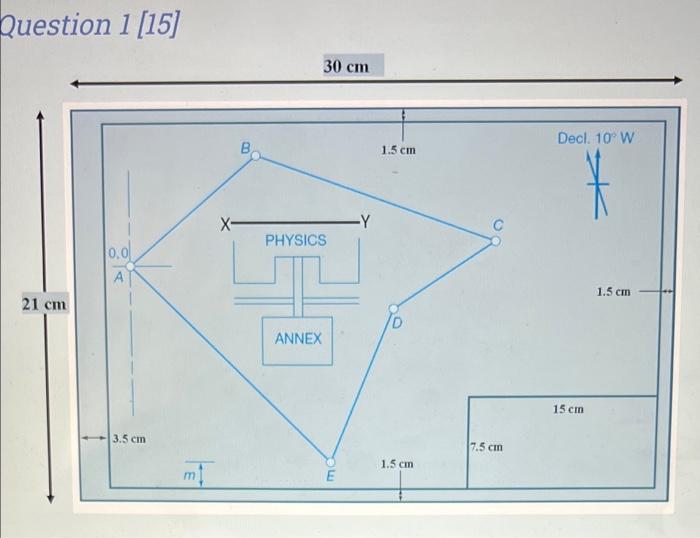

Question 1 [15] 30 cm Decl. 10°W B 1.5 cm -Y PHYSICS 0.0 А 1.5 cm 21 cm ANNEX 15 cm 3.5 cm 7.5 cm 1.5 cm mi E

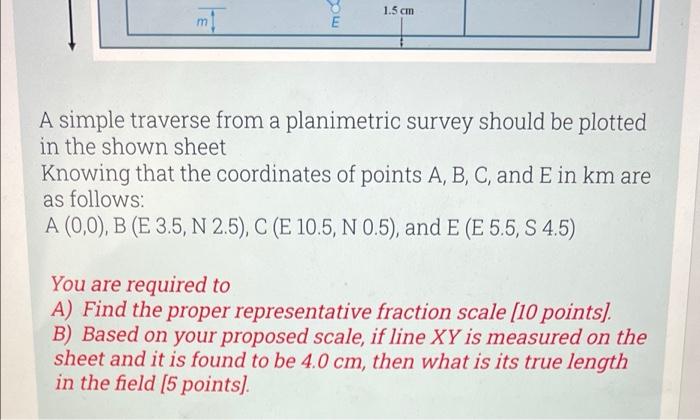

1.5 cm m! E A simple traverse from a planimetric survey should be plotted in the shown sheet Knowing that the coordinates of points A, B, C, and E in km are as follows: A (0,0), B (E 3.5, N 2.5), C (E 10.5, N 0.5), and E (E 5.5, S 4.5) You are required to A) Find the proper representative fraction scale (10 points) B) Based on your proposed scale, if line XY is measured on the sheet and it is found to be 4.0 cm, then what is its true length in the field (5 points)
