1. For the truss shown in Figure 1: a) Indicate the number of its members, joints and reaction forces. (3 marks) b) Usin

[answerhappygod]

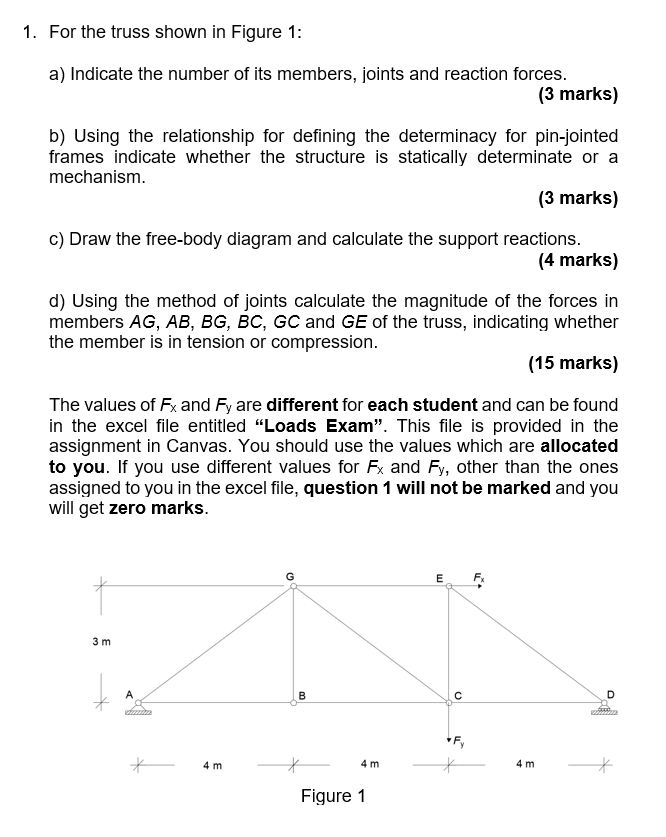

1 For The Truss Shown In Figure 1 A Indicate The Number Of Its Members Joints And Reaction Forces 3 Marks B Usin 1 (54.76 KiB) Viewed 50 times

Hi,
can you kindly do the Q1 with all of sections please and value
of yx and yy is 20 Kn
thank you so much.
1. For the truss shown in Figure 1: a) Indicate the number of its members, joints and reaction forces. (3 marks) b) Using the relationship for defining the determinacy for pin-jointed frames indicate whether the structure is statically determinate or a mechanism. (3 marks) c) Draw the free-body diagram and calculate the support reactions. (4 marks) d) Using the method of joints calculate the magnitude of the forces in members AG, AB, BG, BC, GC and GE of the truss, indicating whether the member is in tension or compression. (15 marks) The values of Fx and Fy are different for each student and can be found in the excel file entitled "Loads Exam". This file is provided in the assignment in Canvas. You should use the values which are allocated to you. If you use different values for Fx and Fy, other than the ones assigned to you in the excel file, question 1 will not be marked and you will get zero marks. G E F 3 m B с D -- F X * 4 m 4 m 4 m * * Figure 1
