QUESTION NO. 2 (35%) The three – hinged Frame is subjected to the wind forces as shown in the figure below. Evaluate and

Post by answerhappygod »

Question No 2 35 The Three Hinged Frame Is Subjected To The Wind Forces As Shown In The Figure Below Evaluate And 1
Question No 2 35 The Three Hinged Frame Is Subjected To The Wind Forces As Shown In The Figure Below Evaluate And 1 (90.02 KiB) Viewed 38 times

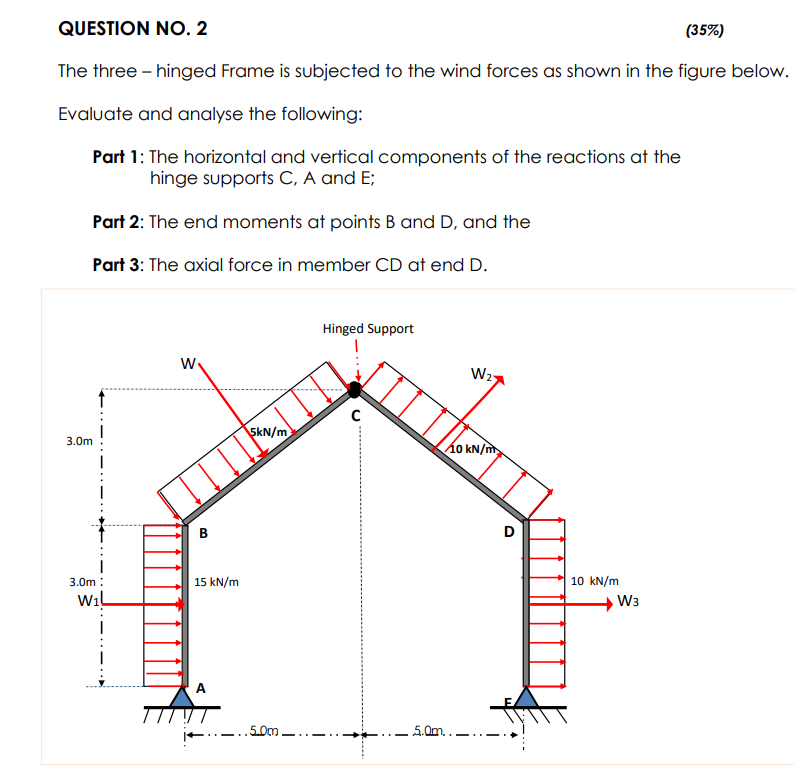

QUESTION NO. 2 (35%) The three – hinged Frame is subjected to the wind forces as shown in the figure below. Evaluate and analyse the following: Part 1: The horizontal and vertical components of the reactions at the hinge supports C, A and E; Part 2: The end moments at points B and D, and the Part 3: The axial force in member CD at end D. Hinged Support W W2 с 5kN/m 3.Om 10 kN/m B D D 3.Om : 15 kN/m wi! 10 kN/m W3 A 5.00 5.0m.
