The three - hinged Frame is subjected to the wind forces as shown in the figure below. Evaluate and analyse the followin

[answerhappygod]

The Three Hinged Frame Is Subjected To The Wind Forces As Shown In The Figure Below Evaluate And Analyse The Followin 1 (54.51 KiB) Viewed 32 times

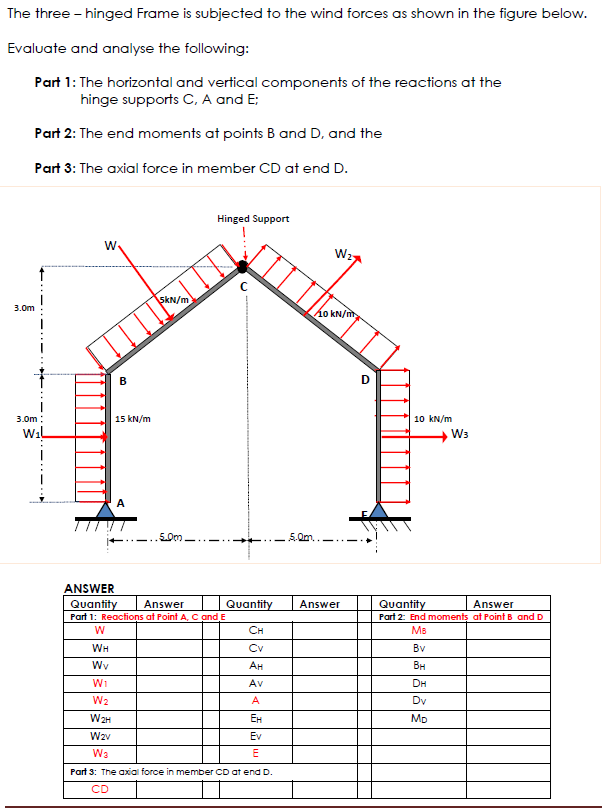

The three - hinged Frame is subjected to the wind forces as shown in the figure below. Evaluate and analyse the following: Part 1: The horizontal and vertical components of the reactions at the hinge supports C, A and E: Part 2: The end moments at points B and D, and the Part 3: The axial force in member CD at end D. Hinged Support W W27 5kN/m 3.0m 40 kN/m B D 3.0m 15 kN/m wa! 10 kN/m W3 5.00 5.0m. Answer Quantity Answer Part 2: End moments at Point B and D MB Bv BH ANSWER Quantity Answer Quantity Part 1: Reactions at Point A. Cand E w CH WH Cv Wv AH W1 AV W2 A W2H EH W2v Ev Wa E DH Dy Mo Part 3: The axial force in member CD at end D. CD
