Please answer the posted question and not another question and
then state the question as answered, I really a looking for help on
this one:

Please Answer The Posted Question And Not Another Question And Then State The Question As Answered I Really A Looking F 1 (53.97 KiB) Viewed 37 times

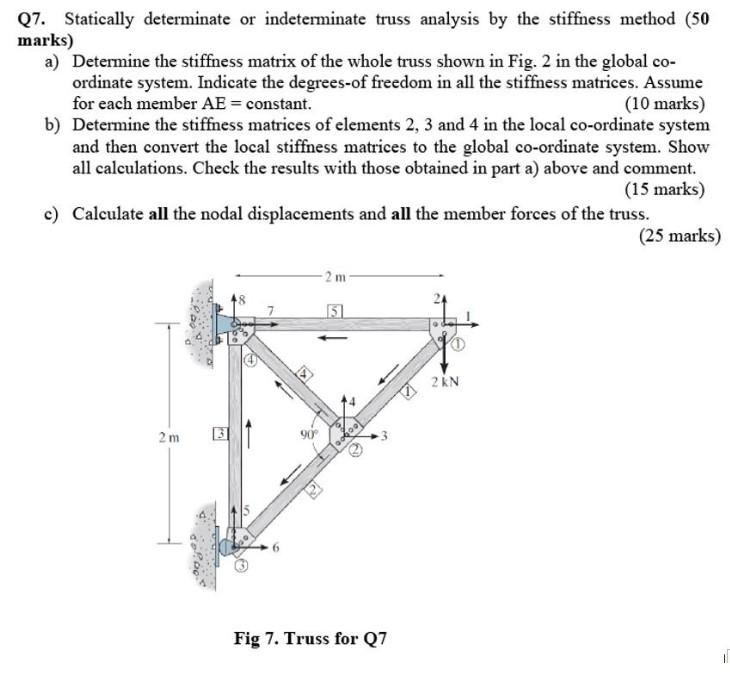

Q7. Statically determinate or indeterminate truss analysis by the stiffness method (50 marks) a) Determine the stiffness matrix of the whole truss shown in Fig. 2 in the global co- ordinate system. Indicate the degrees of freedom in all the stiffness matrices. Assume for each member AE = constant. (10 marks) b) Determine the stiffness matrices of elements 2, 3 and 4 in the local co-ordinate system and then convert the local stiffness matrices to the global co-ordinate system. Show all calculations. Check the results with those obtained in part a) above and comment. (15 marks) c) Calculate all the nodal displacements and all the member forces of the truss. (25 marks) 2 m 2 KN 2 2 m 901 ఆధారంగా Fig 7. Truss for Q7 11
