A beam is subjected to the loading conditions showed in the figure below. Calculate the deflection at a section 1.7 m fr

Post by answerhappygod »

A Beam Is Subjected To The Loading Conditions Showed In The Figure Below Calculate The Deflection At A Section 1 7 M Fr 1
A Beam Is Subjected To The Loading Conditions Showed In The Figure Below Calculate The Deflection At A Section 1 7 M Fr 1 (203.39 KiB) Viewed 35 times

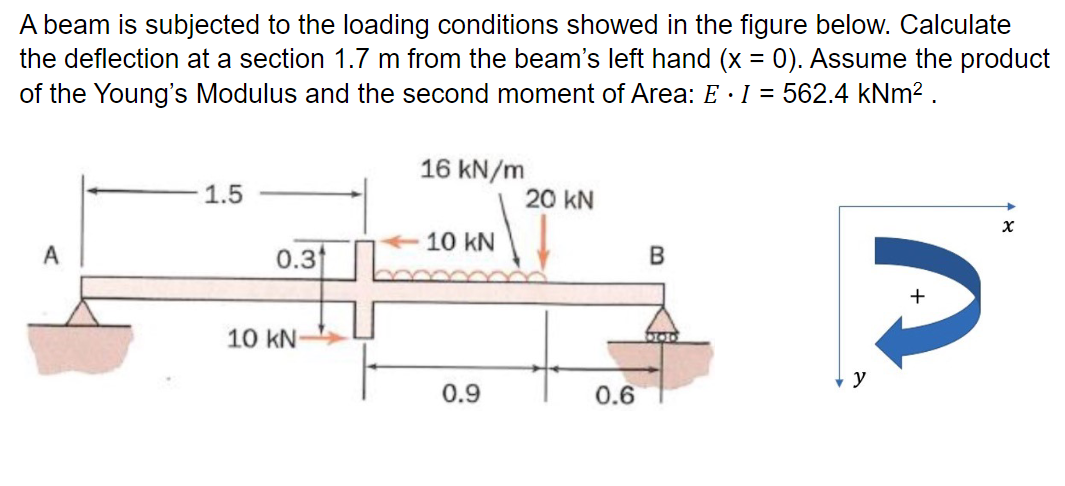

A beam is subjected to the loading conditions showed in the figure below. Calculate the deflection at a section 1.7 m from the beam's left hand (x = 0). Assume the product of the Young's Modulus and the second moment of Area: E • I = 562.4 kNm2. = 16 kN/m 20 KN 1.5 х 10 kN А 0.3 B A 10 KN у 0.9 0.6
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
