5.15. For the connection shown in the accompanying fig. ure, what is the maximum required design strength ORnw? The load

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

5.15. For the connection shown in the accompanying fig. ure, what is the maximum required design strength ORnw? The load

Post by answerhappygod »

5 15 For The Connection Shown In The Accompanying Fig Ure What Is The Maximum Required Design Strength Ornw The Load 1
5 15 For The Connection Shown In The Accompanying Fig Ure What Is The Maximum Required Design Strength Ornw The Load 1 (57.71 KiB) Viewed 32 times
5 15 For The Connection Shown In The Accompanying Fig Ure What Is The Maximum Required Design Strength Ornw The Load 2
5 15 For The Connection Shown In The Accompanying Fig Ure What Is The Maximum Required Design Strength Ornw The Load 2 (44.23 KiB) Viewed 32 times
5.15. For the connection shown in the accompanying fig. ure, what is the maximum required design strength ORnw? The load is 90% live load and 10% dead load. What weld size is indicated if E70 electrodes are used with the SMAW process? locate the ins (b) Use AISC Manual Table 8-4, "Coefficients for Eccentrically Loaded Weld Groups."

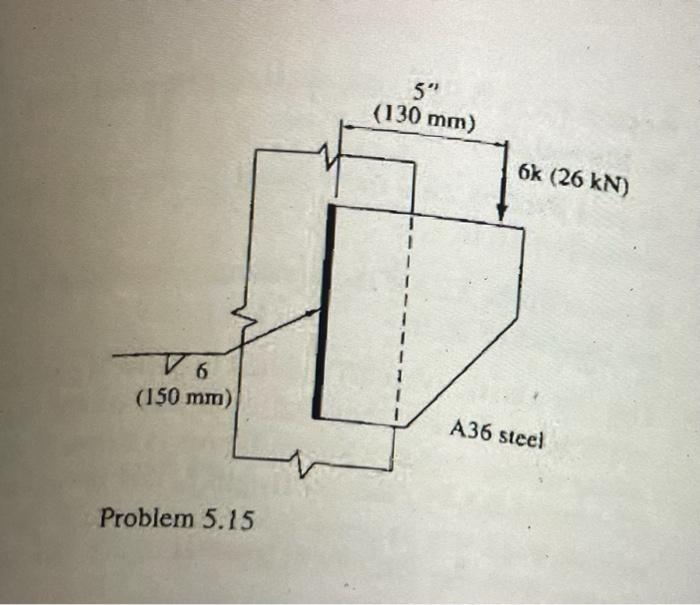

5" (130 mm) 6k (26 KN) 1 V6 1 (150 mm) A36 steel Problem 5.15
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
Post Reply
