1) a) What is a flow net? Sketch flow nets for seepage through the body of an earth dam and also for the seepage taking

[answerhappygod]

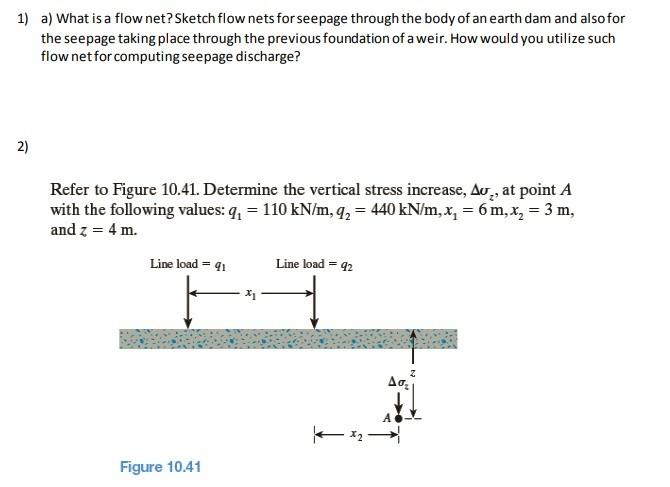

1 A What Is A Flow Net Sketch Flow Nets For Seepage Through The Body Of An Earth Dam And Also For The Seepage Taking 1 (30.87 KiB) Viewed 23 times

1) a) What is a flow net? Sketch flow nets for seepage through the body of an earth dam and also for the seepage taking place through the previous foundation of a weir. How would you utilize such flow net for computing seepage discharge? 2) Refer to Figure 10.41. Determine the vertical stress increase, Au,, at point A with the following values: 9= 110 kN/m,q2 = 440 kN/m, x, = 6 m,x, = 3 m, and z = 4 m. Line load = 91 Line load = 92 Δσ, Figure 10.41
