Print Out The Picture And Show All Measurements You Can Also Use Your Picture To Measure Things By Scaling E G If 1 (60.27 KiB) Viewed 24 times
you can pick an imagine or a garage door. there is no including diagram. the assignment requires us to take a picture and make the diagram

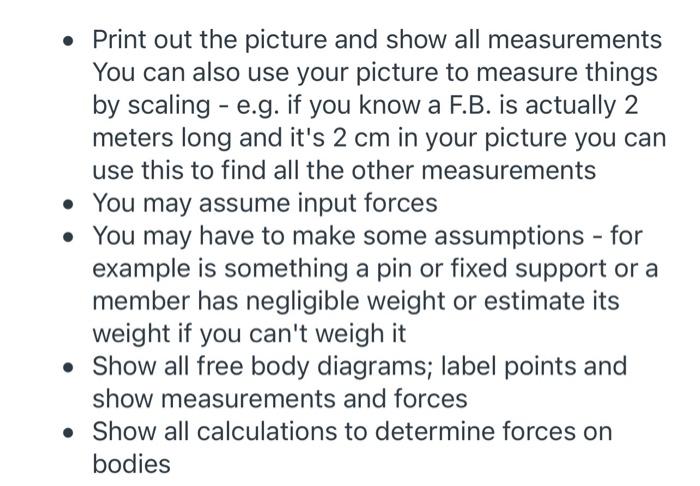

- • Print out the picture and show all measurements You can also use your picture to measure things by scaling - e.g. if you know a F.B. is actually 2 meters long and it's 2 cm in your picture you can use this to find all the other measurements • You may assume input forces • You may have to make some assumptions - for example is something a pin or fixed support or a member has negligible weight or estimate its weight if you can't weigh it Show all free body diagrams; label points and show measurements and forces • Show all calculations to determine forces on bodies
