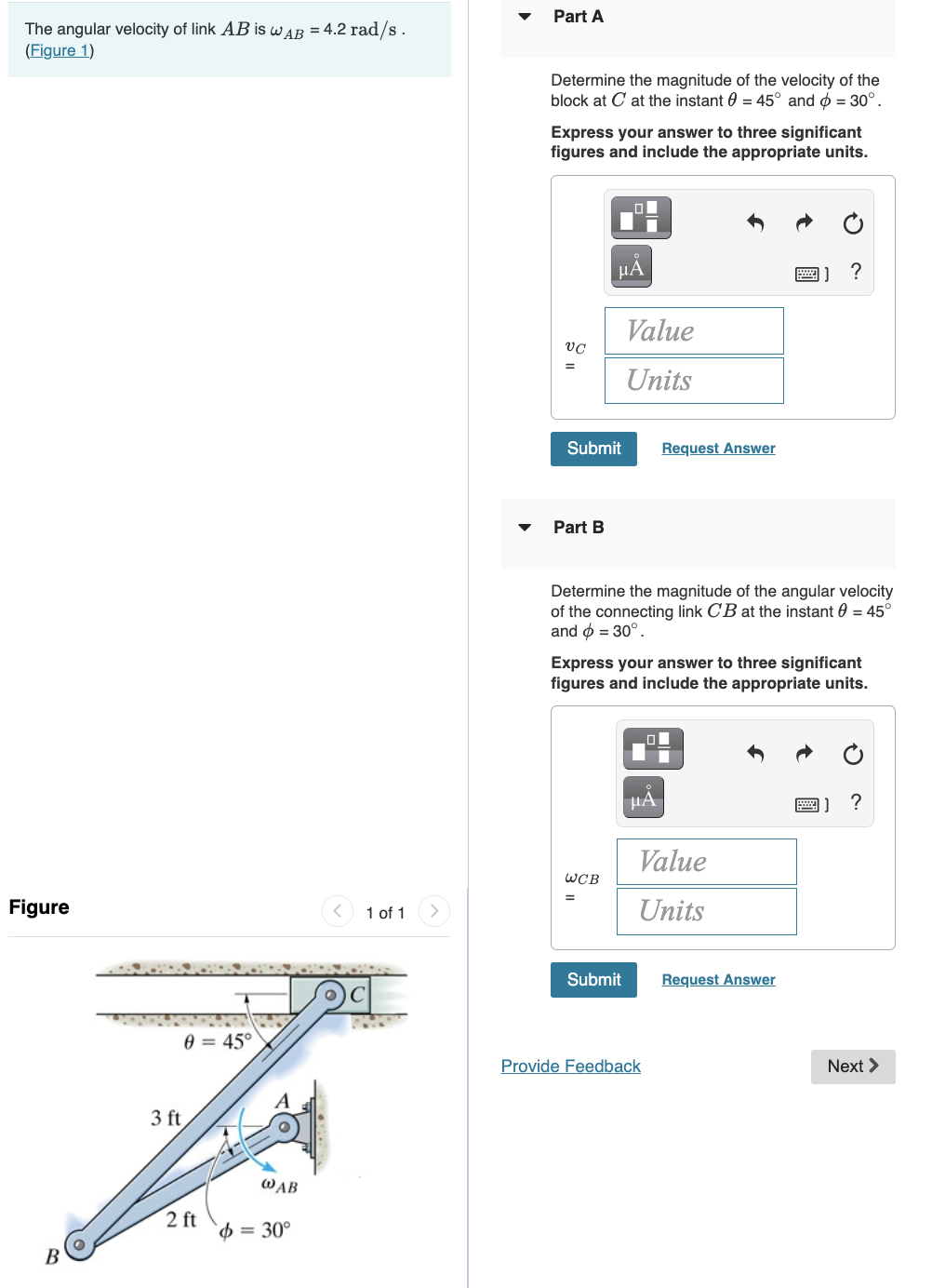

Part A The angular velocity of link AB is w AB = 4.2 rad/s. (Figure 1) Determine the magnitude of the velocity of the bl

[answerhappygod]

Part A The Angular Velocity Of Link Ab Is W Ab 4 2 Rad S Figure 1 Determine The Magnitude Of The Velocity Of The Bl 1 (223.14 KiB) Viewed 36 times

Part A The angular velocity of link AB is w AB = 4.2 rad/s. (Figure 1) Determine the magnitude of the velocity of the block at C at the instant = 45° and o = 30°. Express your answer to three significant figures and include the appropriate units. OL Ii MÅ ? Value VC Units Submit Request Answer Part B Determine the magnitude of the angular velocity of the connecting link CB at the instant = 45° and o = 30° Express your answer to three significant figures and include the appropriate units. μΑ ? Value WCB Figure 1 of 1 Units Submit Request Answer OC = 45° Provide Feedback Next > 3 ft ФАВ 2 ft = 30° B
