6. Concider the circuit shown in figure, where all resistors have the same resistance R. At t = 0, the capacitor C uncha

[answerhappygod]

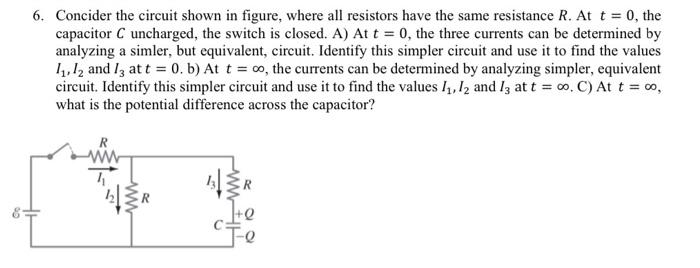

6 Concider The Circuit Shown In Figure Where All Resistors Have The Same Resistance R At T 0 The Capacitor C Uncha 1 (28.41 KiB) Viewed 22 times

6. Concider the circuit shown in figure, where all resistors have the same resistance R. At t = 0, the capacitor C uncharged, the switch is closed. A) At t = 0, the three currents can be determined by analyzing a simler, but equivalent, circuit. Identify this simpler circuit and use it to find the values 11,12 and 13 att = 0. b) At t = 0, the currents can be determined by analyzing simpler, equivalent circuit . Identify this simpler circuit and use it to find the values 11, 12 and 13 at t = 0. C) At t = 0, what is the potential difference across the capacitor? W R 10 Te
