For a classroom demonstration, a professor built an RL circuit similar to the one shown in the figure, with E = 6.00 V,

Post by answerhappygod »

For A Classroom Demonstration A Professor Built An Rl Circuit Similar To The One Shown In The Figure With E 6 00 V 1
For A Classroom Demonstration A Professor Built An Rl Circuit Similar To The One Shown In The Figure With E 6 00 V 1 (25.11 KiB) Viewed 26 times

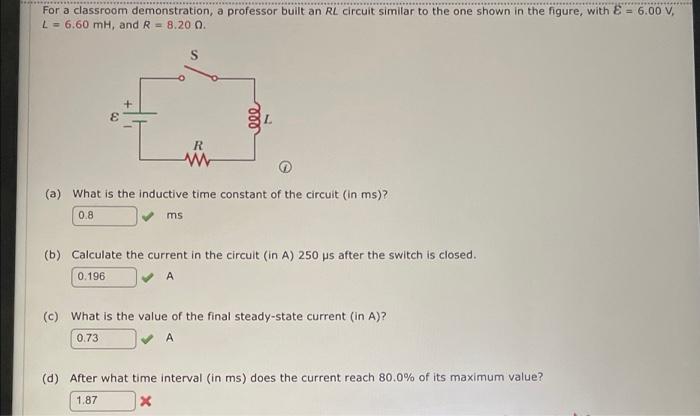

For a classroom demonstration, a professor built an RL circuit similar to the one shown in the figure, with E = 6.00 V, L = 6.60 mH, and R = 8.20 0. S 000 R (a) What is the inductive time constant of the circuit (in ms)? ms 0.8 (b) Calculate the current in the circuit (in A) 250 us after the switch is closed. 0.196 (c) What is the value of the final steady-state current (in A)? 0.73 A (d) After what time interval (in ms) does the current reach 80.0% of its maximum value? 1.87 x
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
