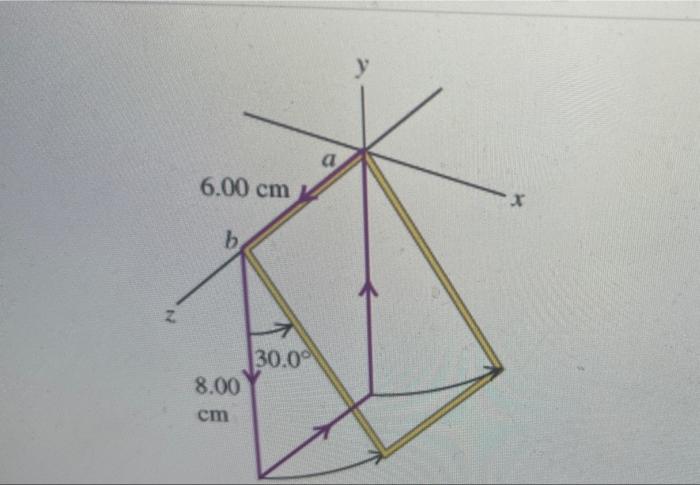

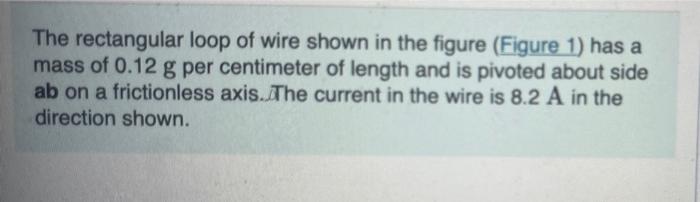

The rectangular loop of wire shown in the figure (Figure 1) has a mass of 0.12 g per centimeter of length and is pivoted about side ab on a frictionless axis. The current in the wire is 8.2 A in the direction shown.
у a 6.00 cm X z N 30.0 8.00 cm
Part A Find the magnitude of the magnetic field parallel to the y-axis that will cause the loop to swing up until its plane makes an angle of 30.0 with the yz-plane. Express your answer in teslas. ΚΙ ΑΣφ ? B- T Submit Request Answer
