- 2 7 The Two Structural Members One Of Which Is In Ten Sion And The Other In Compression Exert The Indi Cated Forces O 1 (32.29 KiB) Viewed 36 times

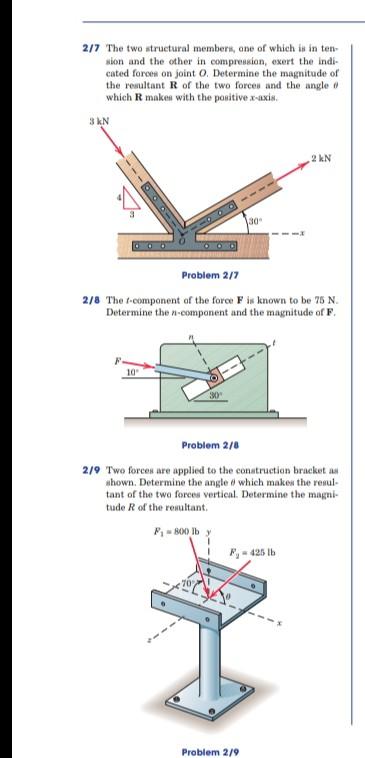

2/7 The two structural members, one of which is in ten sion and the other in compression, exert the indi- cated forces on joint o. Determine the magnitude of the resultant R of the two forces and the angle which makes with the positive x-axis. 3 kN 2 kN 30 Problem 2/7 2/8 The t-component of the force F is known to be 75 N Determine the component and the magnitude of F. 10 O 30 Problem 2/8 2/9 Two forces are applied to the construction bracket whown. Determine the angle which makes the resul tant of the two forces vertical. Determine the magni tude of the resultant P-800 - 42516 70 Problem 2/9
