The circuit shown below contains four capacitors and an ideal battery. C2 (12.0 uF) 5 (3.00 V) C1 (4.00 uF) C3 (6.00 uF)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

The circuit shown below contains four capacitors and an ideal battery. C2 (12.0 uF) 5 (3.00 V) C1 (4.00 uF) C3 (6.00 uF)

Post by answerhappygod »

The Circuit Shown Below Contains Four Capacitors And An Ideal Battery C2 12 0 Uf 5 3 00 V C1 4 00 Uf C3 6 00 Uf 1
The Circuit Shown Below Contains Four Capacitors And An Ideal Battery C2 12 0 Uf 5 3 00 V C1 4 00 Uf C3 6 00 Uf 1 (48.24 KiB) Viewed 41 times

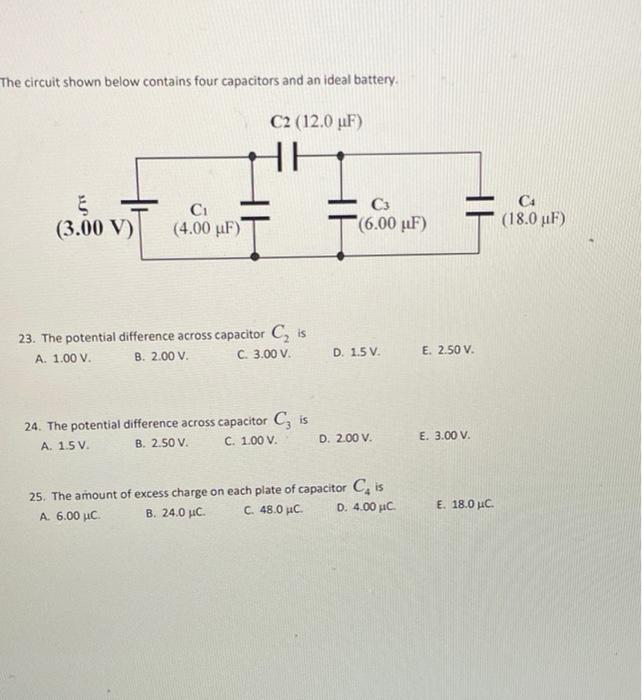

The circuit shown below contains four capacitors and an ideal battery. C2 (12.0 uF) 5 (3.00 V) C1 (4.00 uF) C3 (6.00 uF) CH (18.0 uF) I 23. The potential difference across capacitor C, is A. 1.00 V. B. 2.00 V. C. 3.00 V D. 1.5 V E. 2.50 V. 24. The potential difference across capacitor C, is A 1.5 V B. 2.50 V. C. 1.00 V. D. 2.00 V. E. 3.00 V. 25. The amount of excess charge on each plate of capacitor Cis A. 6.00 μC. Β. 24.0 μC. C. 48.0 μC. D. 4.00 C E. 18.0 uc
