For a single-phase full bridge inverter with VDC = 100 V. The load is a series inductance/resistance with R = 10 Ω and L

Post by answerhappygod »

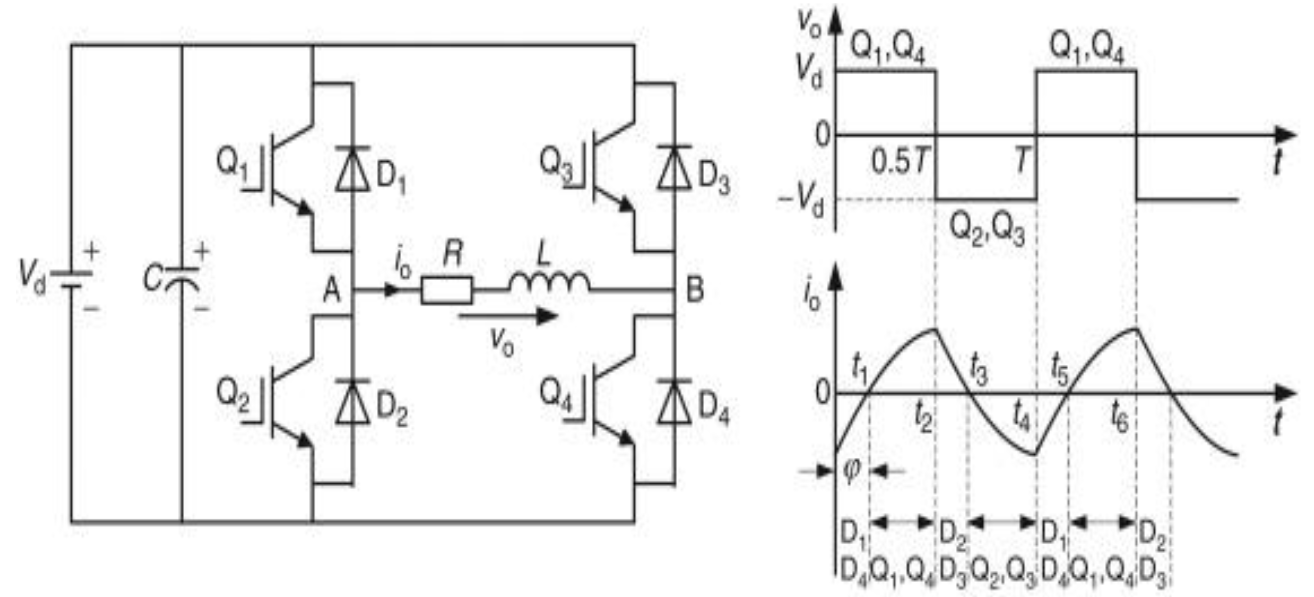

For a single-phase full bridge inverter with VDC = 100 V. The
load is a series inductance/resistance with R = 10 Ω and L = 25 mH
and an output frequency of 50 Hz.
a) Use Fourier Analysis to determine the amplitude of the output
voltage waveform up to the 9th harmonic.
b) Use Fourier Analysis to determine the amplitude of the output
current waveform up to the 9th harmonic.
c) The power absorbed by the load in each harmonic up the 9th
harmonic. d) Calculate the total harmonic distortion factor (THD)
up to the 9th harmonic.
1
1 (282.69 KiB) Viewed 22 times
VA 'Q,,Q4 Vc Q4, Q4 아 oko Qui 103 AD 0.5T т -Vd Q2,Q3 of 1. R A B Vo tz AD2 DA NI D. D. D2 10,Q,,Q,D,Q3,Q,D,Q,Q,D, ID Q
