- 1 20 Marks The Switch Shown In The Figure Below Is Closed At T 0 Determine The Voltage Vc Across The Capacitor For 1 (34.75 KiB) Viewed 20 times
1. [20 marks] The switch shown in the figure below is closed at t= 0. Determine the voltage vc across the capacitor for
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. [20 marks] The switch shown in the figure below is closed at t= 0. Determine the voltage vc across the capacitor for

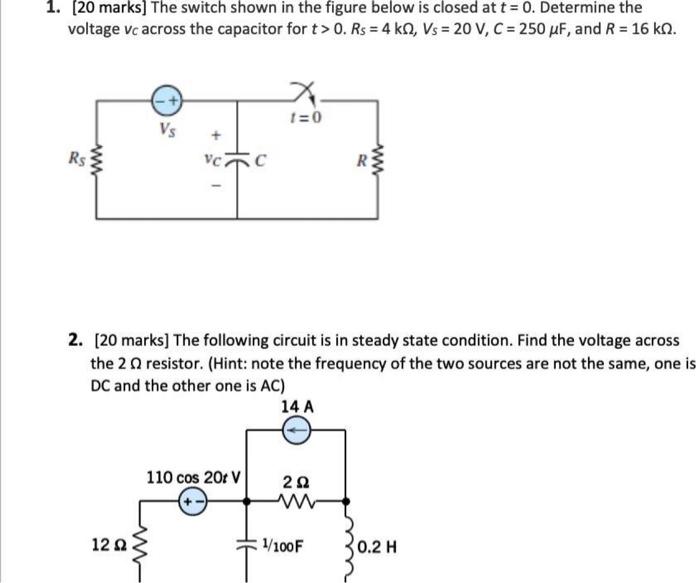

1. [20 marks] The switch shown in the figure below is closed at t= 0. Determine the voltage vc across the capacitor for t> 0. Rs = 4 k., Vs = 20 V, C = 250 pF, and R = 16 kN. X 1=0 Rs VC 50 w w 2. (20 marks] The following circuit is in steady state condition. Find the voltage across the 20 resistor. (Hint: note the frequency of the two sources are not the same, one is DC and the other one is AC) 14 A 110 cos 201 V 2Ω W 12,2 1/100F 0.2 H W
