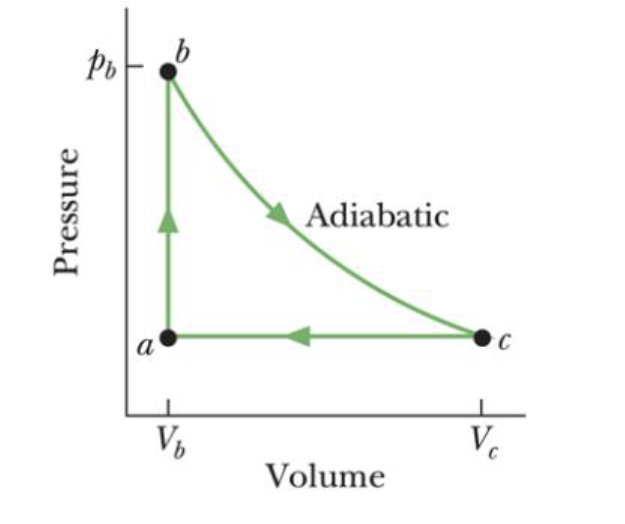

The following figure shows a reversible cycle through which 3.00
mol of a monatomic ideal gas
is taken. Volume Vc = 8.00V0. Process bc is an adiabatic expansion,
with pb = p0
and Vb = V0. For the cycle, find (a) the energy added to the gas as
heat, (b) the
energy leaving the gas as heat, (c) the net work done by the gas,
and (d) the
efficiency of the cycle. Express the answers in terms of p0V0.
The Following Figure Shows A Reversible Cycle Through Which 3 00 Mol Of A Monatomic Ideal Gas Is Taken Volume Vc 8 00 1 (76.42 KiB) Viewed 33 times
Please explain the steps clearly
b рь Pressure Adiabatic a с VO V Volume
