3. (20 pts) A MEMS accelerometer has a seismic mass of lg, a stiffness of 10N/m, and is critically-damped. Its capacitiv

Post by answerhappygod »

3 20 Pts A Mems Accelerometer Has A Seismic Mass Of Lg A Stiffness Of 10n M And Is Critically Damped Its Capacitiv 1
3 20 Pts A Mems Accelerometer Has A Seismic Mass Of Lg A Stiffness Of 10n M And Is Critically Damped Its Capacitiv 1 (23.7 KiB) Viewed 23 times

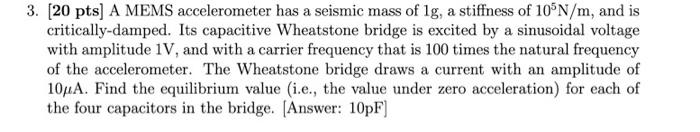

3. (20 pts) A MEMS accelerometer has a seismic mass of lg, a stiffness of 10N/m, and is critically-damped. Its capacitive Wheatstone bridge is excited by a sinusoidal voltage with amplitude 1V, and with a carrier frequency that is 100 times the natural frequency of the accelerometer. The Wheatstone bridge draws a current with an amplitude of 104A. Find the equilibrium value (i.e., the value under zero acceleration) for each of the four capacitors in the bridge. (Answer: 10pF]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
