5) calculate the unknown resistance Rx, when V, the voltage across the bridge is O in the below Wheatstone bridge(3 poin

Post by answerhappygod »

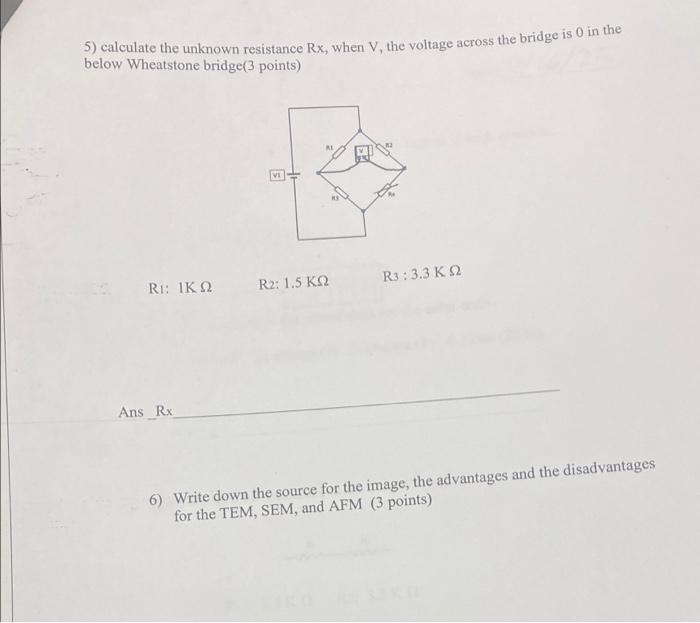

5 Calculate The Unknown Resistance Rx When V The Voltage Across The Bridge Is O In The Below Wheatstone Bridge 3 Poin 1
5 Calculate The Unknown Resistance Rx When V The Voltage Across The Bridge Is O In The Below Wheatstone Bridge 3 Poin 1 (24.73 KiB) Viewed 27 times
5) calculate the unknown resistance Rx, when V, the voltage across the bridge is O in the below Wheatstone bridge(3 points) RE R3: 3.3 K2 R: 1ΚΩ R2: 1.5 KQ2 Ans RX 6) Write down the source for the image, the advantages and the disadvantages for the TEM, SEM, and AFM (3 points)
