ELECTRONIS IL EXPERIMENT 4. Design of a Digital Circuit معلومات الطالب / Student Information الرقم الجامعي اسم الطالب St

[answerhappygod]

1 (31.92 KiB) Viewed 16 times

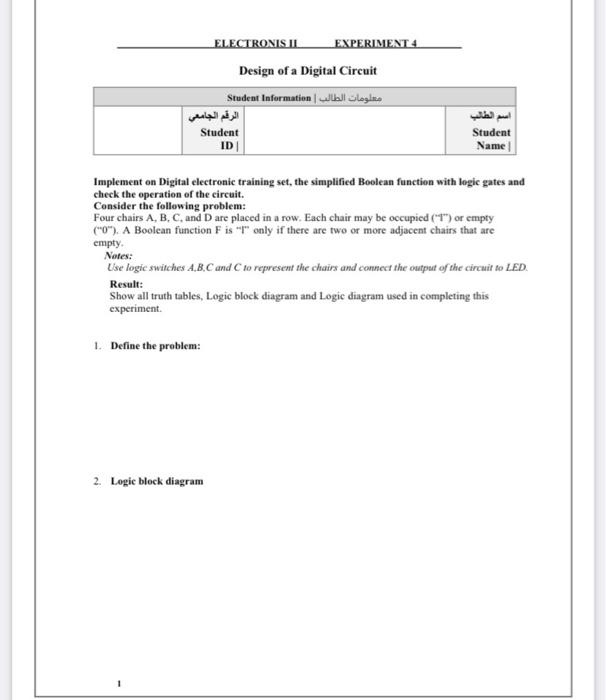

ELECTRONIS IL EXPERIMENT 4. Design of a Digital Circuit معلومات الطالب / Student Information الرقم الجامعي اسم الطالب Student ID Student Name Implement on Digital electronic training set, the simplified Boolean function with logic gates and check the operation of the circuit. Consider the following problem: Four chairs A, B, C. and D are placed in a row. Each chair may be occupied (1) or empty ("0"). A Boolean function F is "1" only if there are two or more adjacent chairs that are empty Notes: Lise logie switches A.B.C and to represent the chairs and connect the output of the circuit to LED. Result: Show all truth tables, Logic block diagram and Logic diagram used in completing this experiment 1. Define the problem: 2. Logic block diagram
