Mechanics of Machines IV (MOM401M) Major Test 1 23 July 2021 1. Question 1 [20] Figure 1.1 illustrates a wheel with a ma

Post by answerhappygod »

Mechanics Of Machines Iv Mom401m Major Test 1 23 July 2021 1 Question 1 20 Figure 1 1 Illustrates A Wheel With A Ma 1
Mechanics Of Machines Iv Mom401m Major Test 1 23 July 2021 1 Question 1 20 Figure 1 1 Illustrates A Wheel With A Ma 1 (37.42 KiB) Viewed 17 times

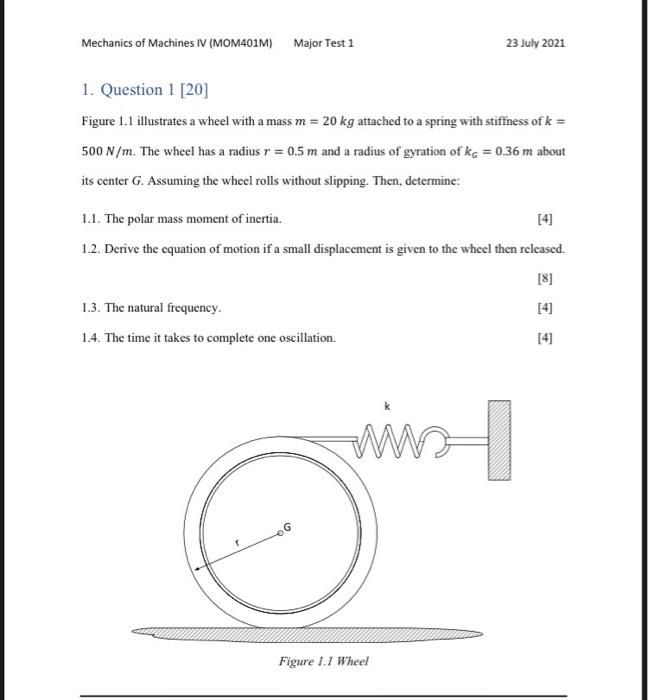

Mechanics of Machines IV (MOM401M) Major Test 1 23 July 2021 1. Question 1 [20] Figure 1.1 illustrates a wheel with a mass m = 20 kg attached to a spring with stiffness of k = 500 N/m. The wheel has a radius r = 0.5 m and a radius of gyration of ks = 0.36 m about its center G. Assuming the wheel rolls without slipping. Then, determine: 1.1. The polar mass moment of inertia. 1.2. Derive the equation of motion if a small displacement is given to the wheel then released. [8] [4] 1.3. The natural frequency 1.4. The time it takes to complete one oscillation. [4] W Figure 1./ Wheel
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
