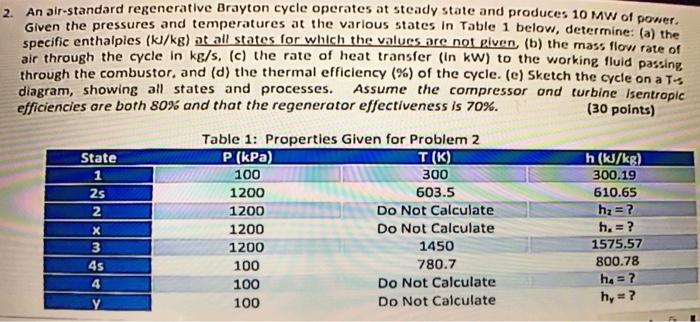

2. An air-standard regenerative Brayton cycle operates at steady state and produces 10 MW of power Given the pressures and temperatures at the various states in Table 1 below, determine: (a) the specific enthalples (kJ/kg) at all states for which the values are not given, (b) the mass flow rate of air through the cycle in kg/s, (c) the rate of heat transfer (In kW) to the working fluid passing through the combustor, and (d) the thermal efficiency (%) of the cycle. (c) Sketch the cycle on a Ts diagram, showing all states and processes. Assume the compressor and turbine Isentropic efficiencies are both 80% and that the regenerator effectiveness is 70%. (30 points) Table 1: Properties Given for Problem 2 State P (kPa) h (kJ/kg) 100 300 300.19 1200 603.5 610.65 2 1200 Do Not Calculate hz = ? 1200 Do Not Calculate h. = ? 3 1200 1450 1575.57 45 100 780.7 800.78 4 100 Do Not Calculate ha = ? 100 Do Not Calculate h = ? T(K) 1 25 х

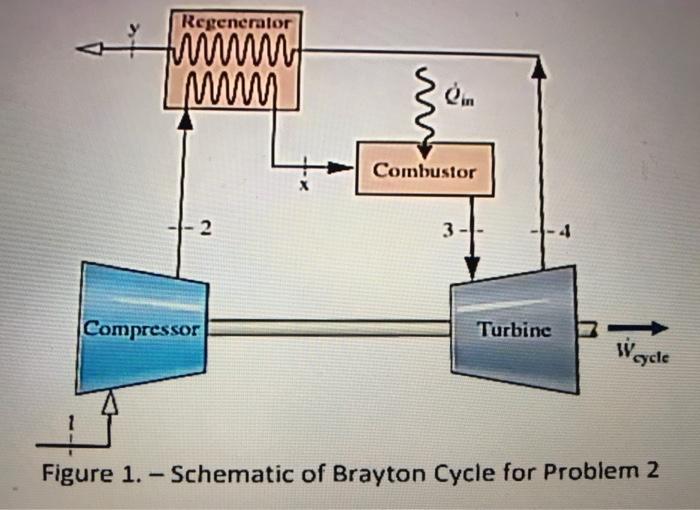

Regenerator mm mm pan Combustor 2 3- 4 Compressor Turbine Weycle 1 - Figure 1. - Schematic of Brayton Cycle for Problem 2
