Problem 3: Find and draw the stress state at points A and B for this combined loading, if the rod has a diameter of 50mm

Post by answerhappygod »

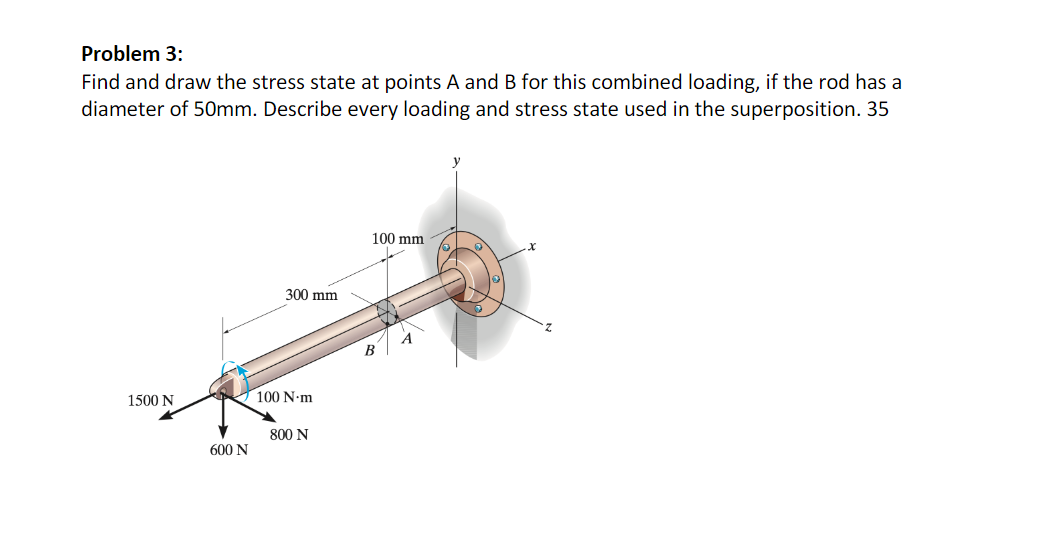

Problem 3 Find And Draw The Stress State At Points A And B For This Combined Loading If The Rod Has A Diameter Of 50mm 1
Problem 3 Find And Draw The Stress State At Points A And B For This Combined Loading If The Rod Has A Diameter Of 50mm 1 (71.31 KiB) Viewed 14 times
Problem 3: Find and draw the stress state at points A and B for this combined loading, if the rod has a diameter of 50mm. Describe every loading and stress state used in the superposition. 35 100 mm 300 mm 1500 N 100 N.m 800 N 600 N
