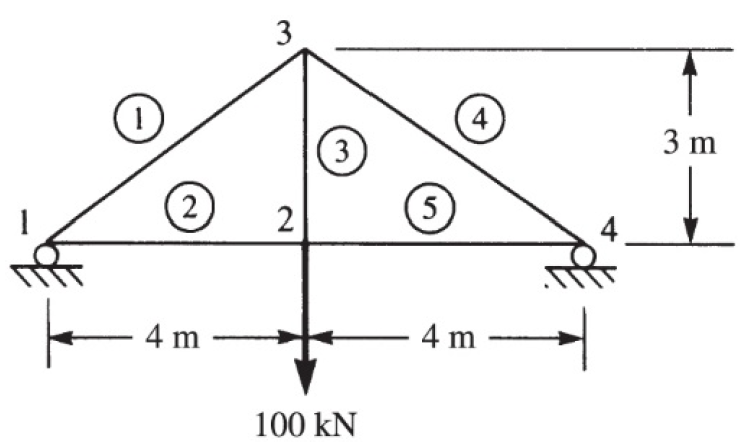

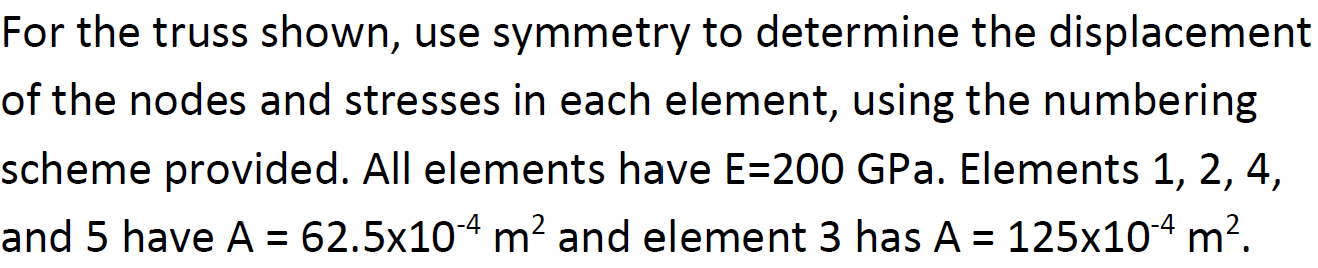

For the truss shown, use symmetry to determine the displacement of the nodes and stresses in each element, using the numbering scheme provided. All elements have E=200 GPa. Elements 1, 2, 4, and 5 have A = 62.5x10-4 m2 and element 3 has A = 125x10-4 m².
3 4 3 3) 3 m 2 2 5 4 m 4 m 100 KN
