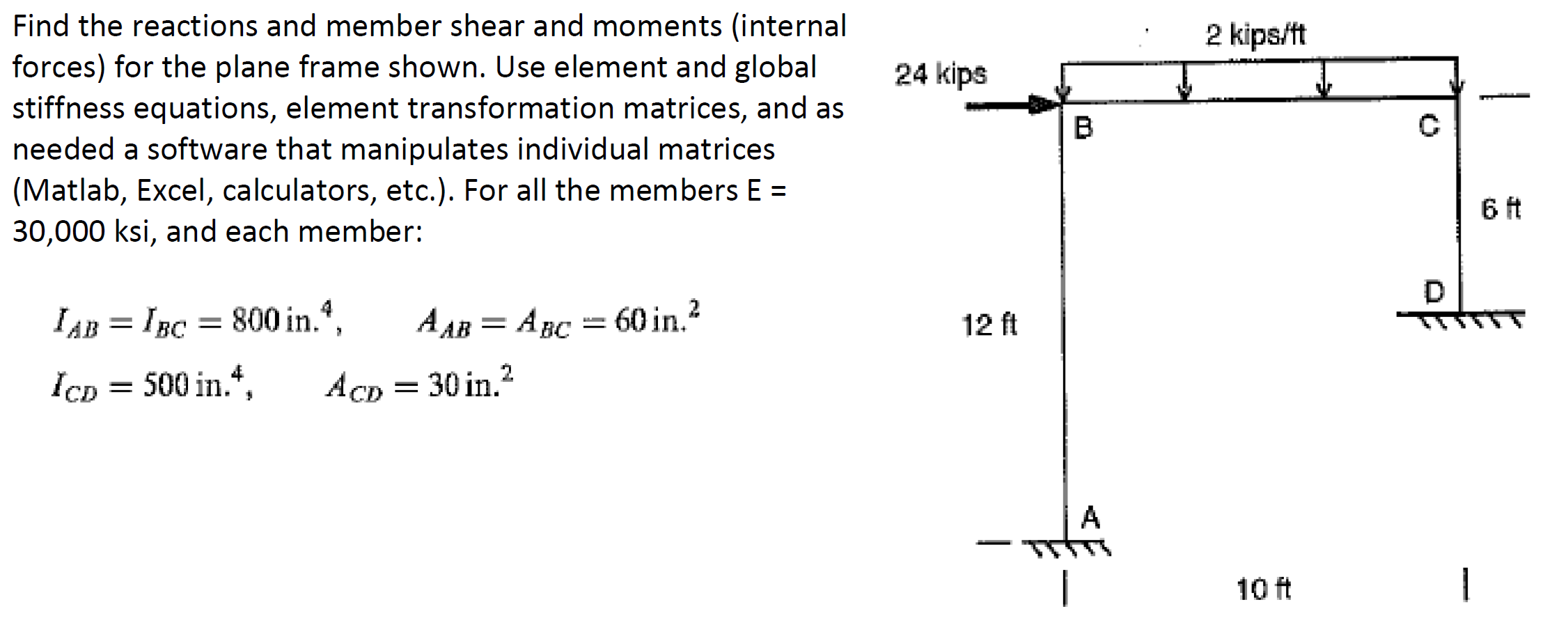

2 kips/ft 24 kips Find the reactions and member shear and moments (internal forces) for the plane frame shown. Use eleme

[answerhappygod]

2 Kips Ft 24 Kips Find The Reactions And Member Shear And Moments Internal Forces For The Plane Frame Shown Use Eleme 1 (105.06 KiB) Viewed 15 times

2 kips/ft 24 kips Find the reactions and member shear and moments (internal forces) for the plane frame shown. Use element and global stiffness equations, element transformation matrices, and as needed a software that manipulates individual matrices (Matlab, Excel, calculators, etc.). For all the members E = 30,000 ksi, and each member: B 6 ft D 12 ft LAB = IBC = 800 in., IcD = 500 in.4, A AB = ABC = 60 in. 2 = 30 in.2 ACD = A - 10 ft 1
