1. (a) Using a property diagram, describe a system characteristics curve for a specific pipeline system. [Omks] (b) A st

Post by answerhappygod »

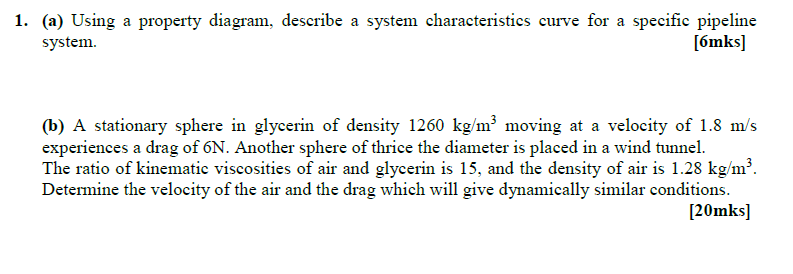

1 A Using A Property Diagram Describe A System Characteristics Curve For A Specific Pipeline System Omks B A St 1
1 A Using A Property Diagram Describe A System Characteristics Curve For A Specific Pipeline System Omks B A St 1 (26.74 KiB) Viewed 19 times
1. (a) Using a property diagram, describe a system characteristics curve for a specific pipeline system. [Omks] (b) A stationary sphere in glycerin of density 1260 kg/m² moving at a velocity of 1.8 m/s experiences a drag of 6N. Another sphere of thrice the diameter is placed in a wind tunnel. The ratio of kinematic viscosities of air and glycerin is 15, and the density of air is 1.28 kg/m?. Determine the velocity of the air and the drag which will give dynamically similar conditions. [20mks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
