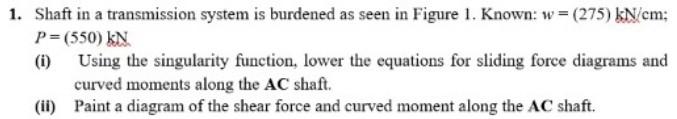

1. Shaft in a transmission system is burdened as seen in Figure 1. Known: w= (275) kN/cm; P=(550) KN (1) Using the singularity function, lower the equations for sliding force diagrams and curved moments along the AC shaft. (ii) Paint a diagram of the shear force and curved moment along the AC shaft.

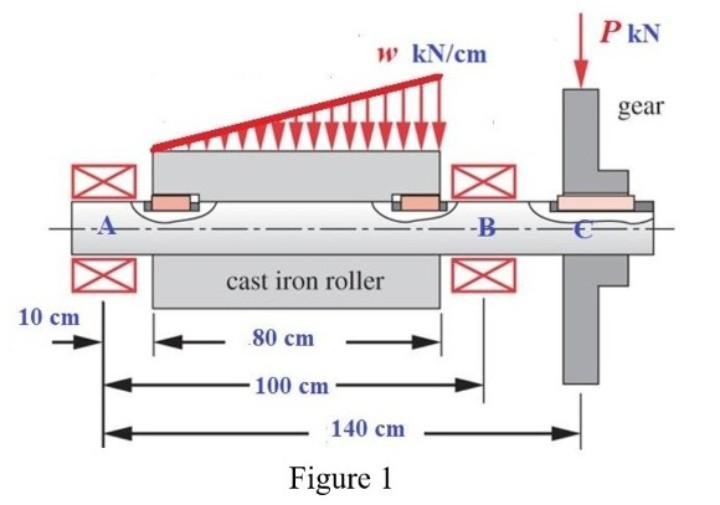

PKN w kN/cm gear -B cast iron roller 10 cm 80 cm 100 cm 140 cm Figure 1
