Example 4 Consider three pipes connected in i) series and ii) parallel. The following data are required: L1 = 100 m D1 =

[answerhappygod]

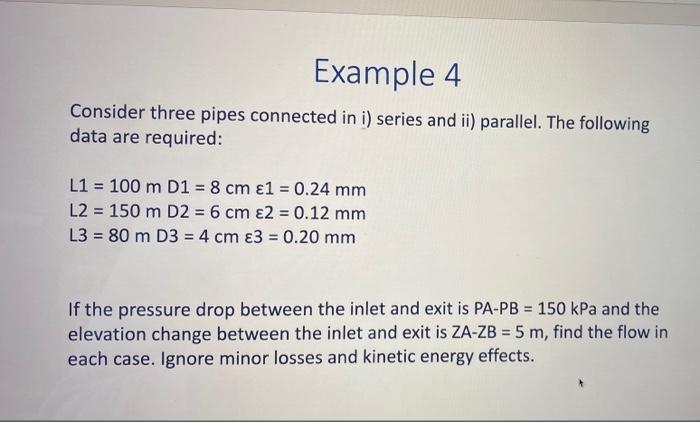

Example 4 Consider Three Pipes Connected In I Series And Ii Parallel The Following Data Are Required L1 100 M D1 1 (36.19 KiB) Viewed 25 times

Example 4 Consider three pipes connected in i) series and ii) parallel. The following data are required: L1 = 100 m D1 = 8 cm £1 = 0.24 mm L2 = 150 m D2 = 6 cm €2 = 0.12 mm L3 = 80 m D3 = 4 cm €3 = 0.20 mm -- = If the pressure drop between the inlet and exit is PA-PB = 150 kPa and the elevation change between the inlet and exit is ZA-ZB = 5 m, find the flow in each case. Ignore minor losses and kinetic energy effects.
