Part A The compound disk pulley consists of a hub and attached outer rim. (Figure 1) If it has a mass of 5 kg and a radi

Post by answerhappygod »

Part A The Compound Disk Pulley Consists Of A Hub And Attached Outer Rim Figure 1 If It Has A Mass Of 5 Kg And A Radi 1
Part A The Compound Disk Pulley Consists Of A Hub And Attached Outer Rim Figure 1 If It Has A Mass Of 5 Kg And A Radi 1 (76.74 KiB) Viewed 39 times

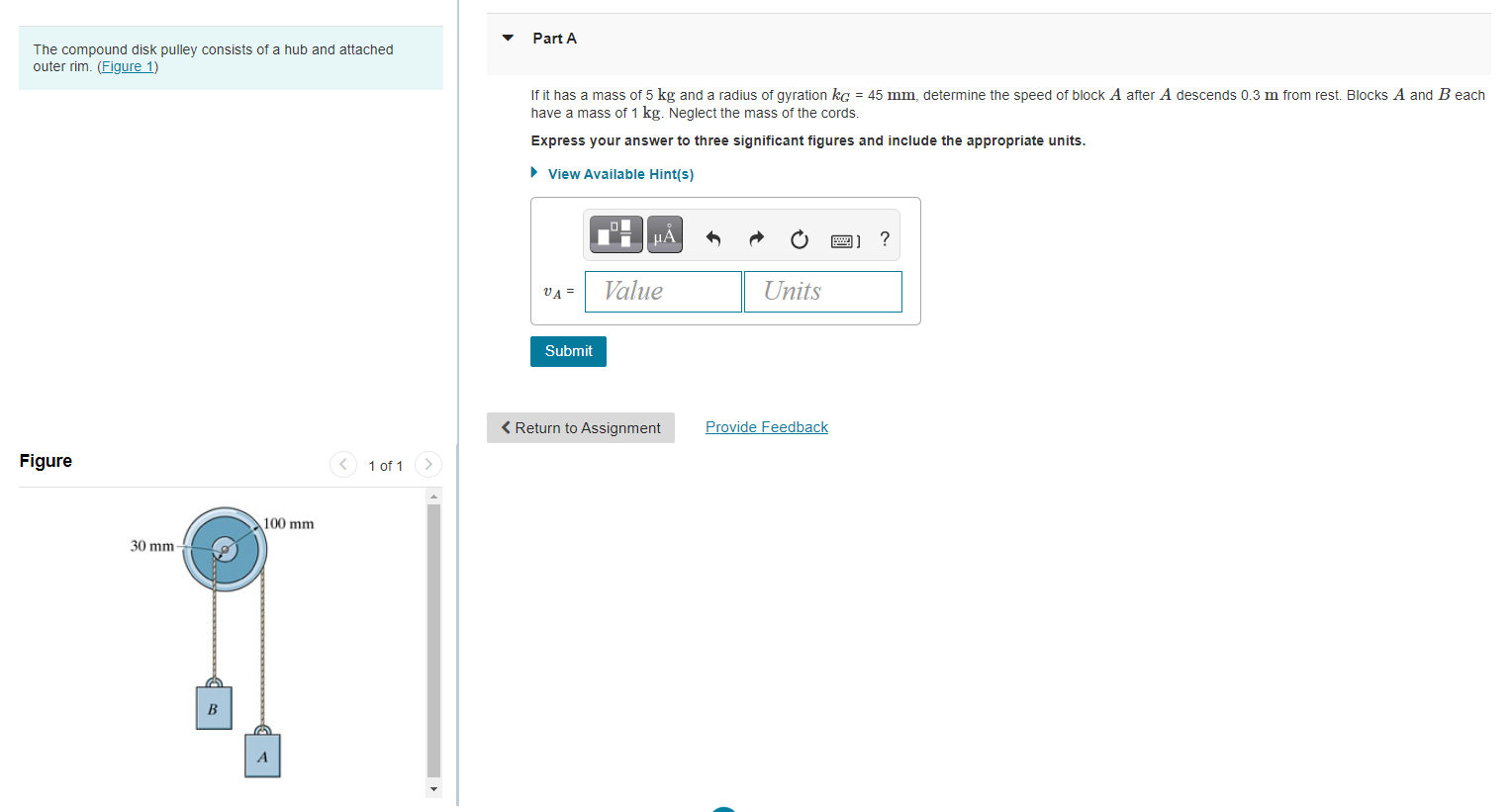

Part A The compound disk pulley consists of a hub and attached outer rim. (Figure 1) If it has a mass of 5 kg and a radius of gyration kg = 45 mm, determine the speed of block A after A descends 0.3 m from rest. Blocks A and B each have a mass of 1 kg. Neglect the mass of the cords. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) uA ? VA = Value Units Submit < Return to Assignment Provide Feedback Figure 1 of 1 100 mm 30 mm B A
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
