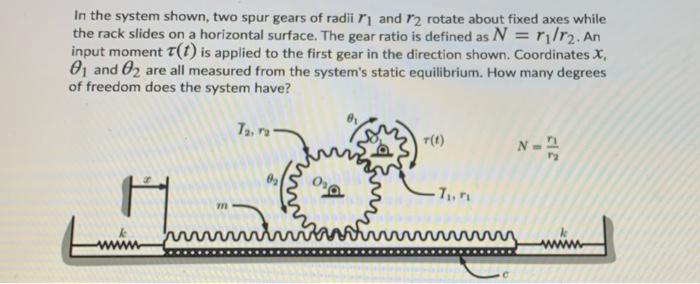

In the system shown, two spur gears of radii r and r2 rotate about fixed axes while the rack slides on a horizontal surface. The gear ratio is defined as N = r /r2. An input moment t(t) is applied to the first gear in the direction shown. Coordinates x, @, and O2 are all measured from the system's static equilibrium. How many degrees of freedom does the system have? 7. (1) SI 00 -In m www

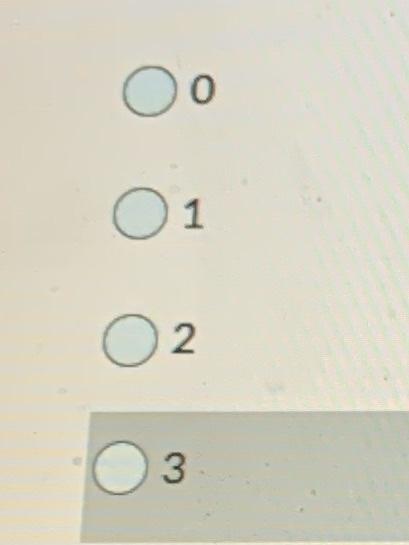

Oo O1 02 3
