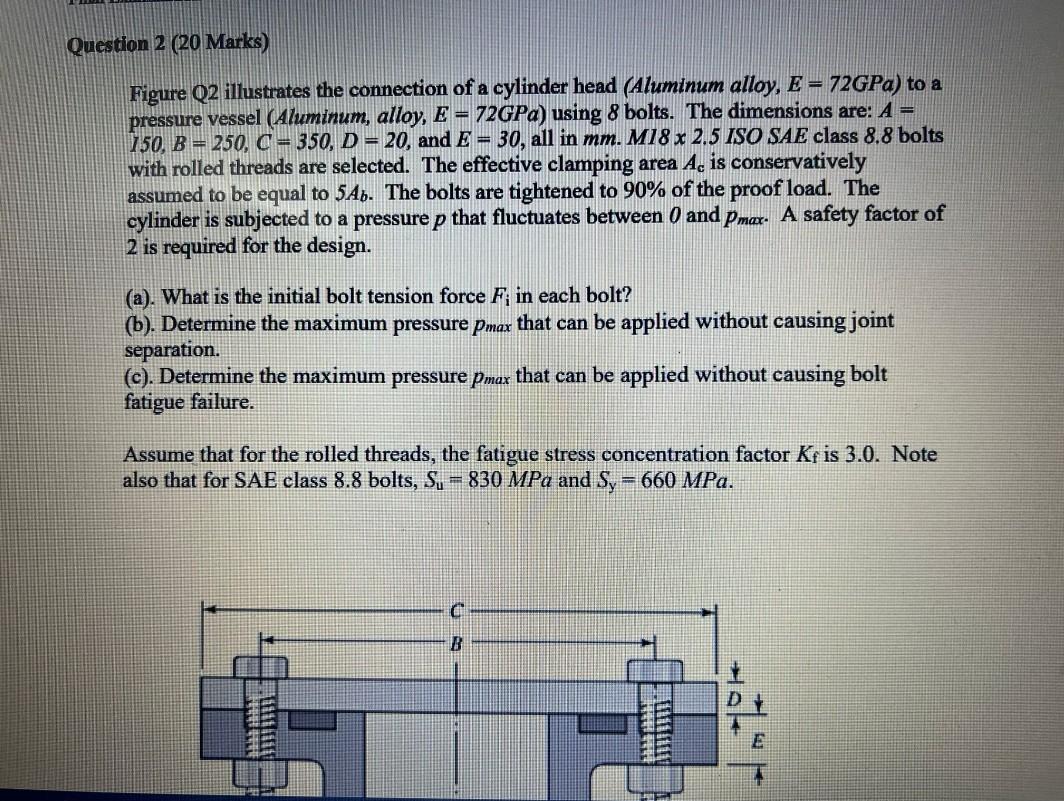

Question 2 (20 Marks) Figure Q2 illustrates the connection of a cylinder head (Aluminum alloy, E = 72GPa) to a pressure vessel (Aluminum, alloy, E = 72GPa) using 8 bolts. The dimensions are: A = 750, B = 250, C = 350, D = 20, and E = 30, all in mm. M18 x 2.5 ISO SAE class 8.8 bolts with rolled threads are selected. The effective clamping area Ac is conservatively assumed to be equal to 5A). The bolts are tightened to 90% of the proof load. The cylinder is subjected to a pressure p that fluctuates between 0 and Pmar. A safety factor of 2 is required for the design. (a). What is the initial bolt tension force Fi in each bolt? (b). Determine the maximum pressure Pmax that can be applied without causing joint separation. (c). Determine the maximum pressure Pmax that can be applied without causing bolt fatigue failure. Assume that for the rolled threads, the fatigue stress concentration factor Kf is 3.0. Note also that for SAE class 8.8 bolts, Su = 830 MPa and Sy = 660 MPa. B PD D E

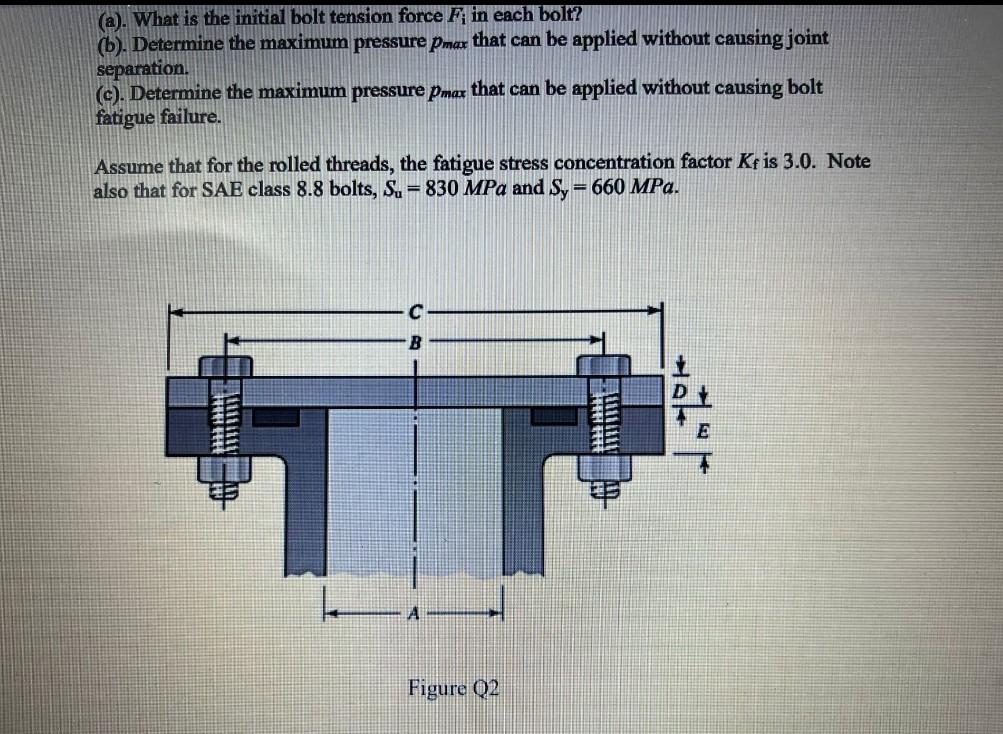

(a). What is the initial bolt tension force F in each bolt? (b). Determine the maximum pressure Pmar that can be applied without causing joint separation. (c). Determine the maximum pressure Pmax that can be applied without causing bolt fatigue failure. Assume that for the rolled threads, the fatigue stress concentration factor Kfis 3.0. Note also that for SAE class 8.8 bolts, S. = 830 MPa and Sy=660 MPa. = B ut HHHH!! Figure Q2
