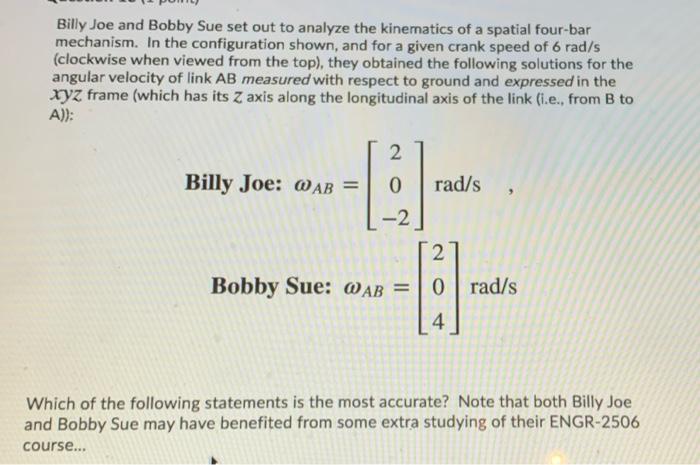

Billy Joe and Bobby Sue set out to analyze the kinematics of a spatial four-bar mechanism. In the configuration shown, and for a given crank speed of 6 rad/s (clockwise when viewed from the top), they obtained the following solutions for the angular velocity of link AB measured with respect to ground and expressed in the xyz frame (which has its Z axis along the longitudinal axis of the link (.e., from B to A)); 2 Billy Joe: @AB = 0 rad/s -2 2 Bobby Sue: WAB = 0 rad/s 4 Which of the following statements is the most accurate? Note that both Billy Joe and Bobby Sue may have benefited from some extra studying of their ENGR-2506 course...

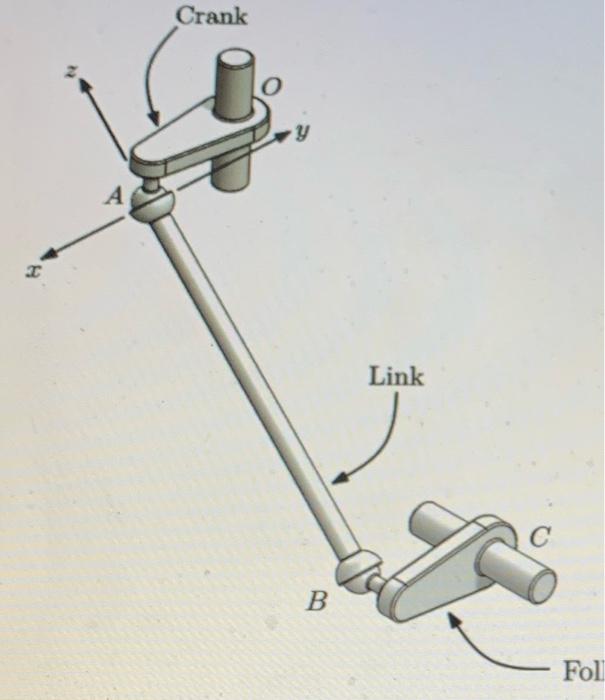

Crank y А Link B Foll

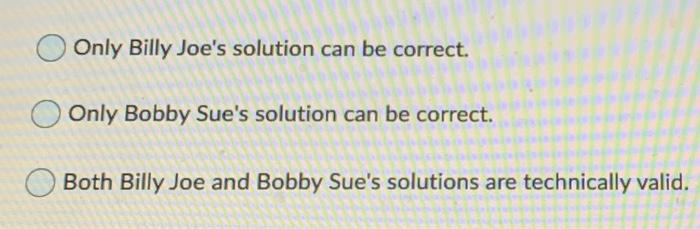

Only Billy Joe's solution can be correct. Only Bobby Sue's solution can be correct. Both Billy Joe and Bobby Sue's solutions are technically valid.
