Question 4 (20 Marks) Consider Figure Q4 below, showing the two bearings required to transmit constant in- service loads

Post by answerhappygod »

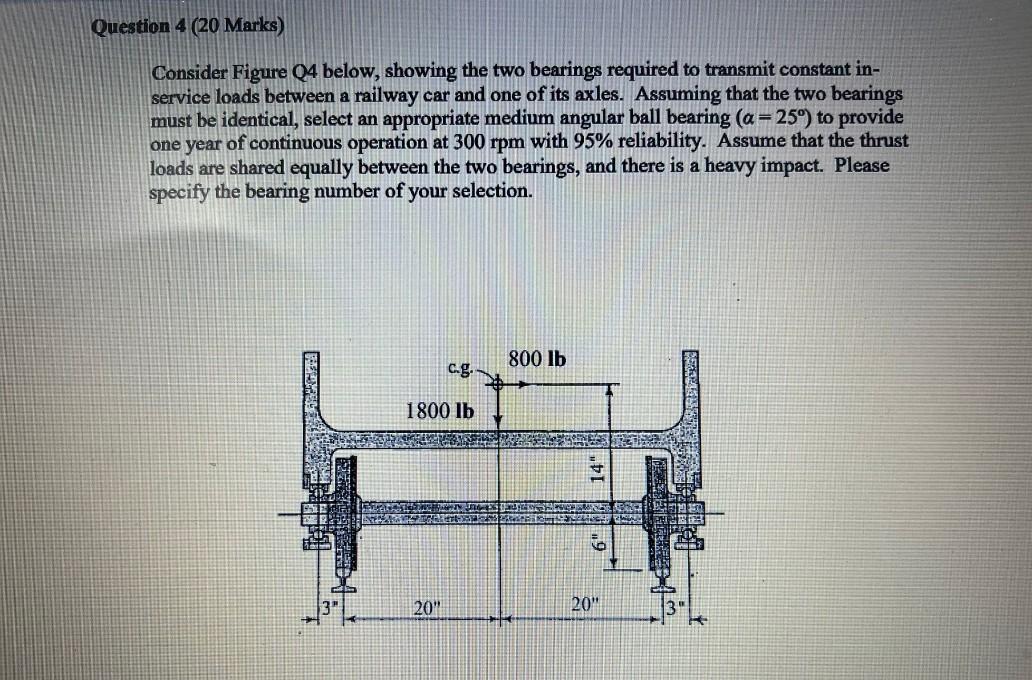

Question 4 20 Marks Consider Figure Q4 Below Showing The Two Bearings Required To Transmit Constant In Service Loads 1
Question 4 20 Marks Consider Figure Q4 Below Showing The Two Bearings Required To Transmit Constant In Service Loads 1 (145.84 KiB) Viewed 19 times
solve in 35 mins i will thumb up
Question 4 (20 Marks) Consider Figure Q4 below, showing the two bearings required to transmit constant in- service loads between a railway car and one of its axles. Assuming that the two bearings must be identical, select an appropriate medium angular ball bearing (a= 25°) to provide one year of continuous operation at 300 rpm with 95% reliability. Assume that the thrust loads are shared equally between the two bearings, and there is a heavy impact. Please specify the bearing number of your selection. 800 lb cogs 1800 lb 14" BUSINESS 2 20" 20"
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
