Figure Q2 (e) shows a belt drive used to transmit power from electric motor A to a fan. The electric motor A is rotated

Post by answerhappygod »

Figure Q2 E Shows A Belt Drive Used To Transmit Power From Electric Motor A To A Fan The Electric Motor A Is Rotated 1
Figure Q2 E Shows A Belt Drive Used To Transmit Power From Electric Motor A To A Fan The Electric Motor A Is Rotated 1 (92.44 KiB) Viewed 22 times

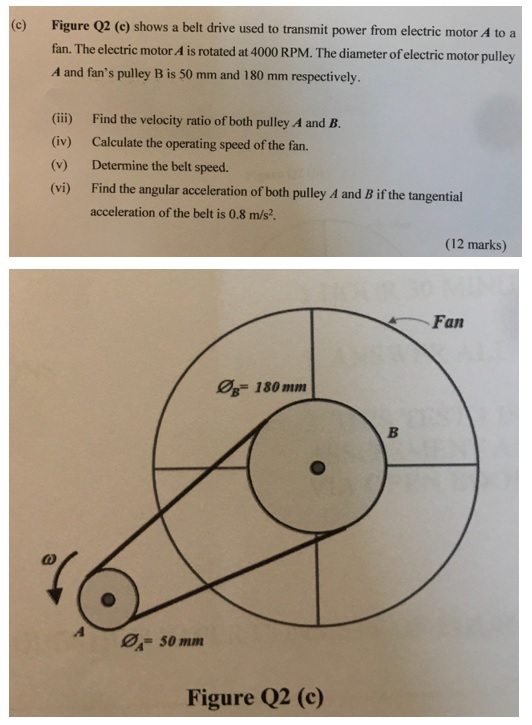

Figure Q2 (e) shows a belt drive used to transmit power from electric motor A to a fan. The electric motor A is rotated at 4000 RPM. The diameter of electric motor pulley A and fan's pulley B is 50 mm and 180 mm respectively. (iii) (iv) (v) (vi) Find the velocity ratio of both pulley A and B. Calculate the operating speed of the fan. Determine the belt speed. Find the angular acceleration of both pulley A and B if the tangential acceleration of the belt is 0.8 m/s. (12 marks) Fan Øs-180 mm B 02-50 mm Figure Q2 (c)
