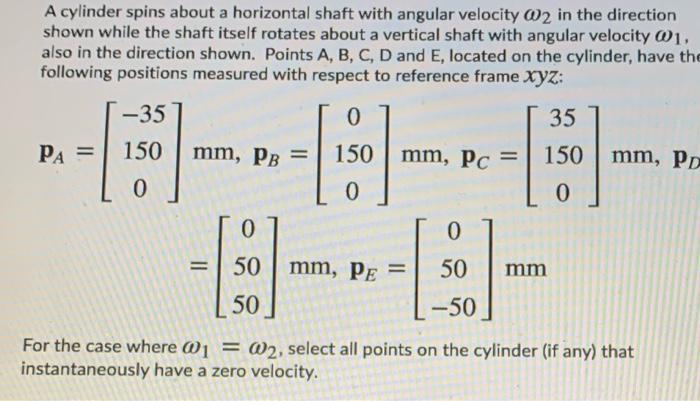

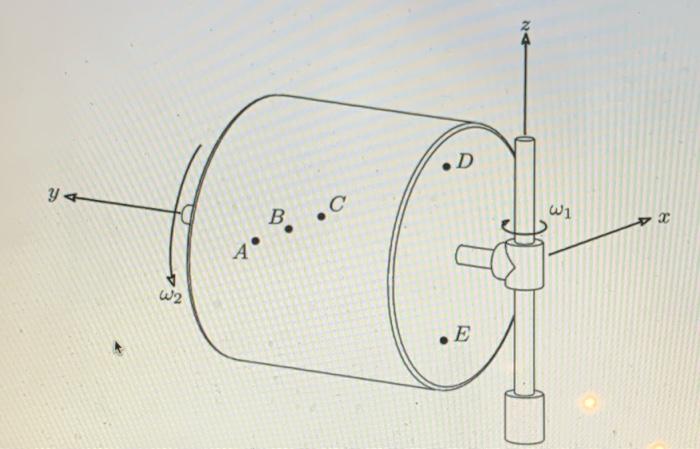

A cylinder spins about a horizontal shaft with angular velocity 02 in the direction shown while the shaft itself rotates about a vertical shaft with angular velocity 01. also in the direction shown. Points A, B, C, D and E, located on the cylinder, have the following positions measured with respect to reference frame xyz: -35 0 35 PA = 150 mm, PB = 150 mm, PC Pc = 150 mm, PD 0 0 0 C: = 0 0 50 mm, PE = 50 mm 50 -50 - For the case where 01 = 02, select all points on the cylinder (if any) that instantaneously have a zero velocity.
.D с B الا 5 А دلها E

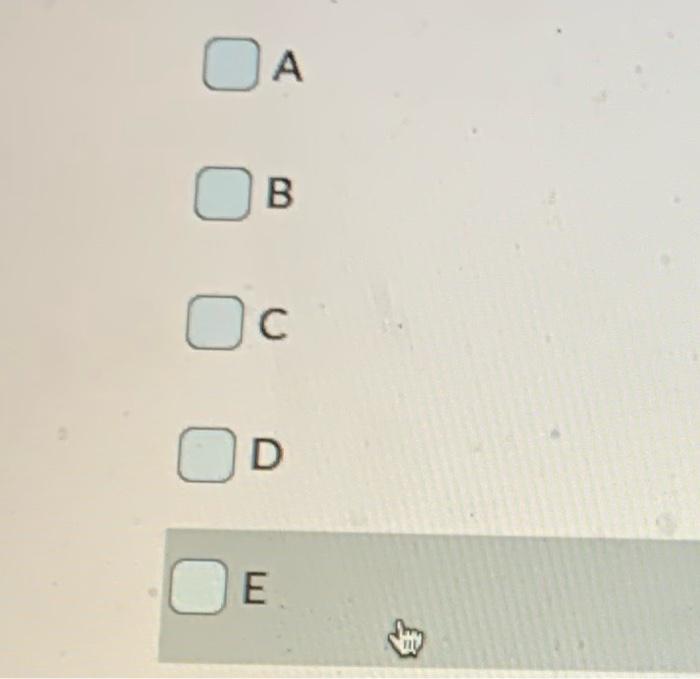

ОА Ов Ос OD E
