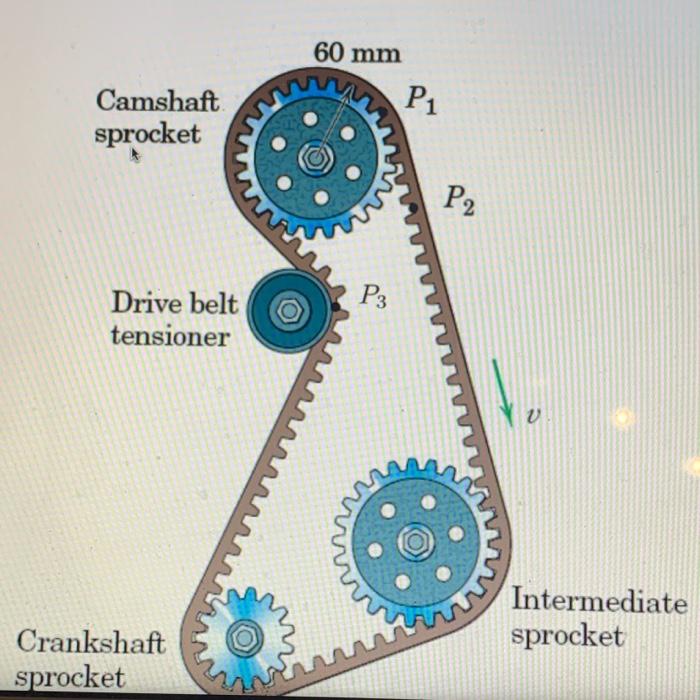

Consider the belt-drive system illustrated. If the belt is always kept in tension and cannot stretch which is the correct sorting of points P1, P2 and P3 in terms of the increasing order of the magnitude of their total acceleration for a given belt speed V.
60 mm P1 Camshaft sprocket P2 P3 Drive belt tensioner Intermediate sprocket Crankshaft sprocket

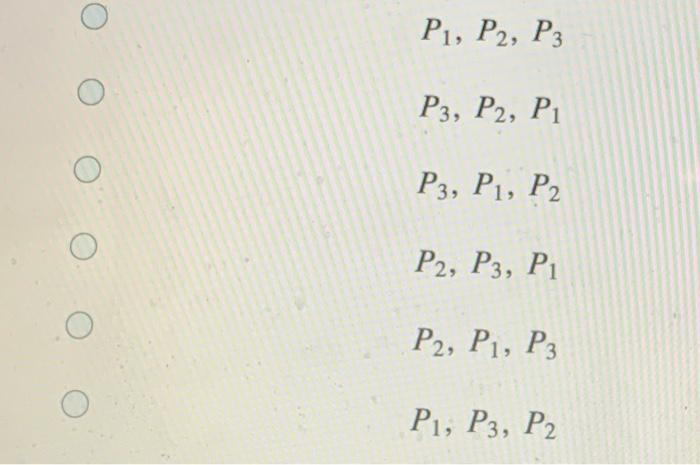

Pi, P., P3 P3, Р., Р. P3, P, P, Р., Р, Р. Р., Р, РЗ P, P3, Р.
