5. The hollow steel shaft shown is 3 m long and has an outer diameter of 60 mm. When it is rotating at 90 rad/s, it tran

[answerhappygod]

5 The Hollow Steel Shaft Shown Is 3 M Long And Has An Outer Diameter Of 60 Mm When It Is Rotating At 90 Rad S It Tran 1 (168.58 KiB) Viewed 19 times

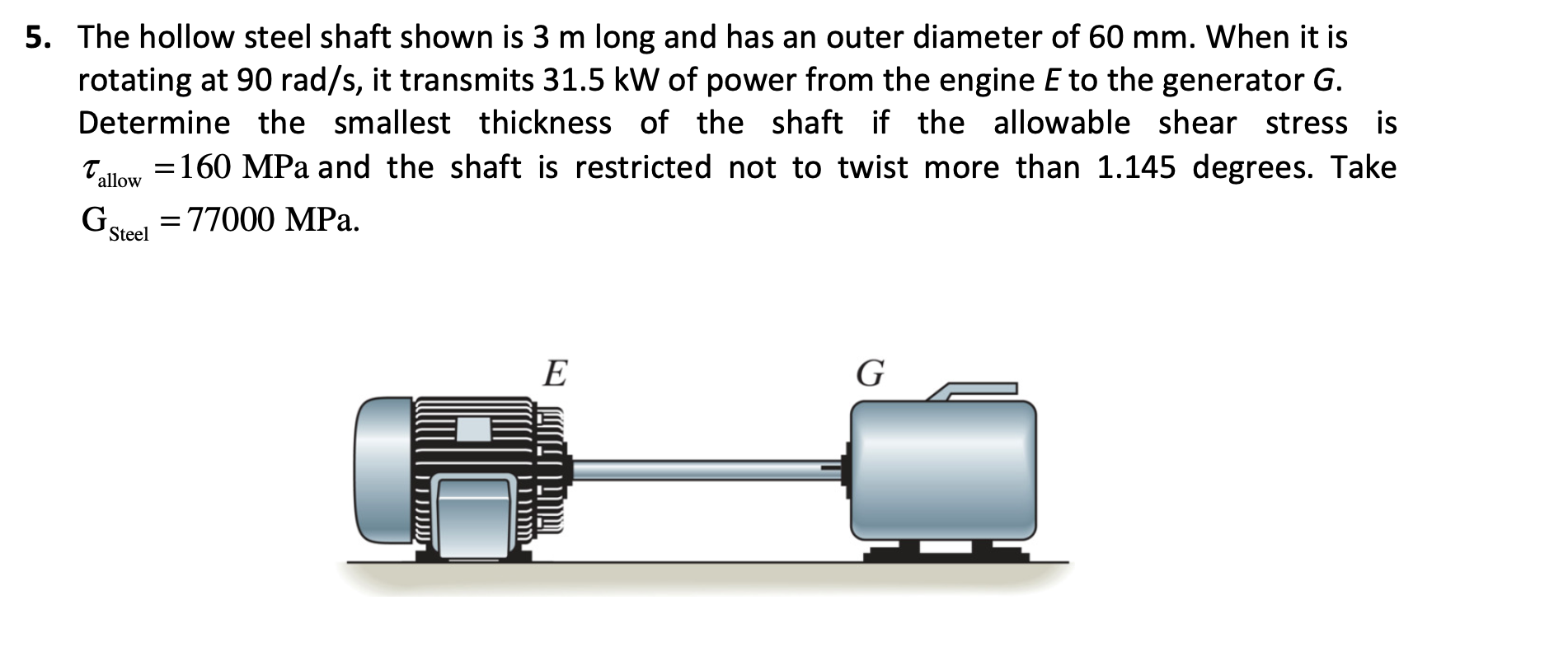

5. The hollow steel shaft shown is 3 m long and has an outer diameter of 60 mm. When it is rotating at 90 rad/s, it transmits 31.5 kW of power from the engine E to the generator G. Determine the smallest thickness of the shaft if the allowable shear stress is τ. =160 MPa and the shaft is restricted not to twist more than 1.145 degrees. Take GSteel = 77000 MPa. allow - E G
