The hollow steel shaft shown is 3 m long and has an outer diameter of 60 mm. When it is rotating at 90 rad/s, it transmi

Post by answerhappygod »

The Hollow Steel Shaft Shown Is 3 M Long And Has An Outer Diameter Of 60 Mm When It Is Rotating At 90 Rad S It Transmi 1
The Hollow Steel Shaft Shown Is 3 M Long And Has An Outer Diameter Of 60 Mm When It Is Rotating At 90 Rad S It Transmi 1 (63.6 KiB) Viewed 27 times

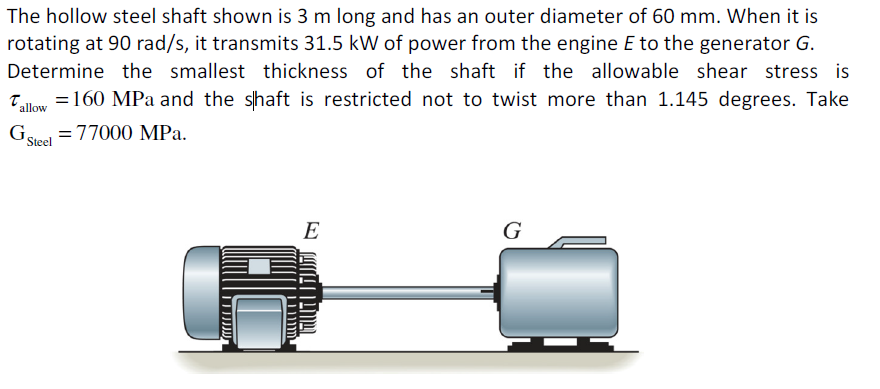

The hollow steel shaft shown is 3 m long and has an outer diameter of 60 mm. When it is rotating at 90 rad/s, it transmits 31.5 kW of power from the engine E to the generator G. Determine the smallest thickness of the shaft if the allowable shear stress is Tallow = 160 MPa and the shaft is restricted not to twist more than 1.145 degrees. Take = 77000 MPa. Steel Gste E G F. UTILITI
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
