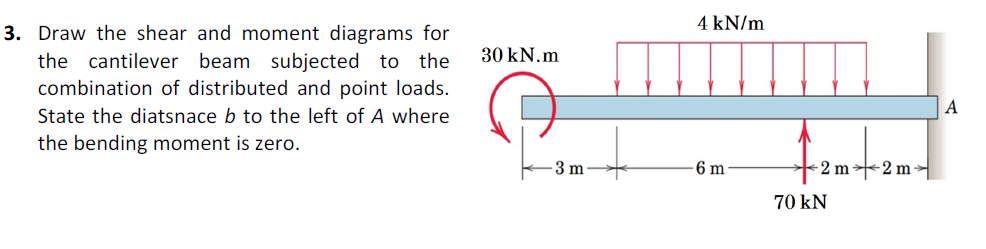

4 kN/m 30 kN.m 3. Draw the shear and moment diagrams for the cantilever beam subjected to the combination of distributed and point loads. State the diatsnace b to the left of A where the bending moment is zero. A +2. 3 m 6 m -2 m + 2 m 70 kN
