- C Figure Q2 C Shows A Belt Drive Used To Transmit Power From Electric Motor A To A Fan The Electric Motor A Is Rota 1 (74.05 KiB) Viewed 27 times
Fan Øg= 180 mm B B 0.2= 50 mm Figure Q2 (c)
(C) Figure Q2 (c) shows a belt drive used to transmit power from electric motor A to a fan. The electric motor A is rota
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(C) Figure Q2 (c) shows a belt drive used to transmit power from electric motor A to a fan. The electric motor A is rota

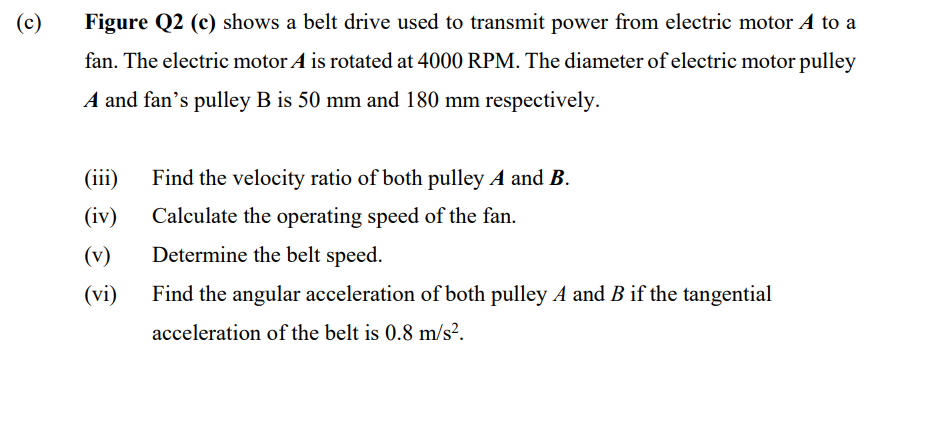

(C) Figure Q2 (c) shows a belt drive used to transmit power from electric motor A to a fan. The electric motor A is rotated at 4000 RPM. The diameter of electric motor pulley A and fan's pulley B is 50 mm and 180 mm respectively. (iii) (iv) (v) (vi) Find the velocity ratio of both pulley A and B. Calculate the operating speed of the fan. Determine the belt speed. Find the angular acceleration of both pulley A and B if the tangential acceleration of the belt is 0.8 m/s2.
Fan Øg= 180 mm B B 0.2= 50 mm Figure Q2 (c)
Fan Øg= 180 mm B B 0.2= 50 mm Figure Q2 (c)
