A piston-cylinder as shown in the figure below initially contains water at 130 kPa, and a volume of 0.3 m®(state 1). The

Post by answerhappygod »

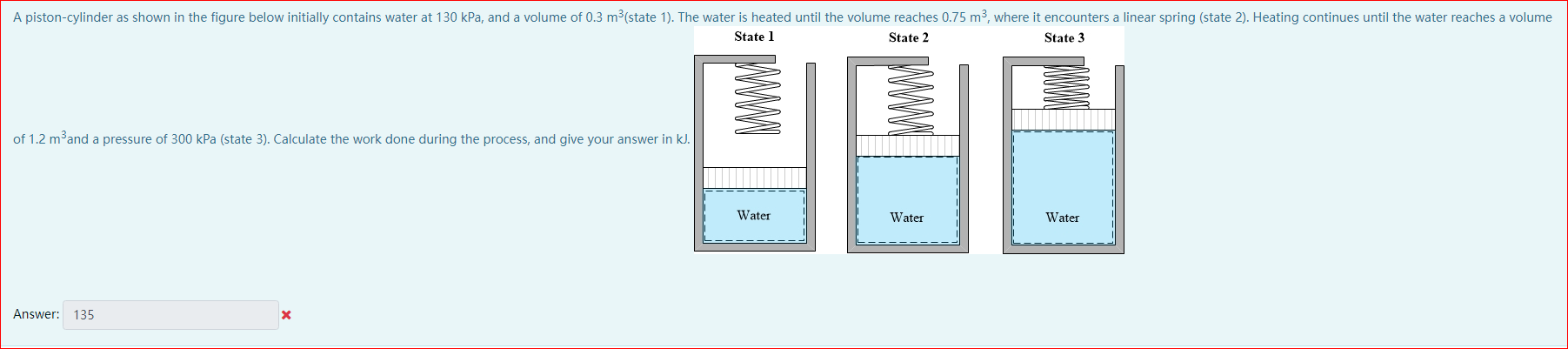

A Piston Cylinder As Shown In The Figure Below Initially Contains Water At 130 Kpa And A Volume Of 0 3 M State 1 The 1
A Piston Cylinder As Shown In The Figure Below Initially Contains Water At 130 Kpa And A Volume Of 0 3 M State 1 The 1 (43.61 KiB) Viewed 26 times
A piston-cylinder as shown in the figure below initially contains water at 130 kPa, and a volume of 0.3 m®(state 1). The water is heated until the volume reaches 0.75 m3, where it encounters a linear spring (state 2). Heating continues until the water reaches a volume State 1 State 2 State 3 of 1.2 m’and a pressure of 300 kPa (state 3). Calculate the work done during the process, and give your answer in kl. NO Water Water Water Answer: 135 X
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
