5. An oil pump is drawing 40 kW of electric power while pumping oil with p = 860 kg/m3 at a rate of 0.1 m²/s. The inlet
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
5. An oil pump is drawing 40 kW of electric power while pumping oil with p = 860 kg/m3 at a rate of 0.1 m²/s. The inlet

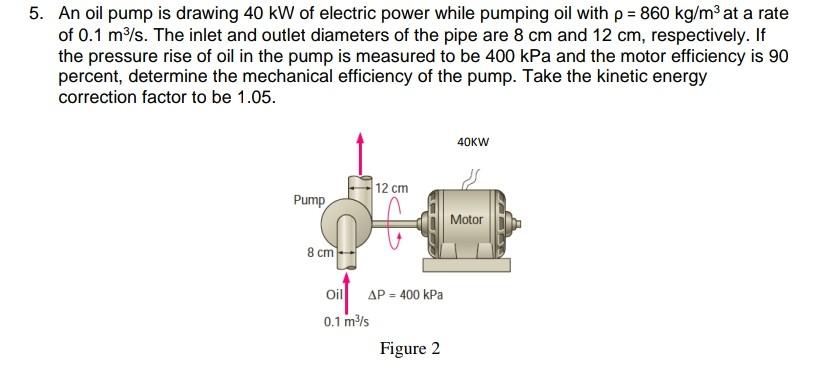

5. An oil pump is drawing 40 kW of electric power while pumping oil with p = 860 kg/m3 at a rate of 0.1 m²/s. The inlet and outlet diameters of the pipe are 8 cm and 12 cm, respectively. If the pressure rise of oil in the pump is measured to be 400 kPa and the motor efficiency is 90 percent, determine the mechanical efficiency of the pump. Take the kinetic energy correction factor to be 1.05. 40KW 12 cm Pump Motor 8 cm Oill AP = 400 kPa 0.1 m/s Figure 2
