a) b) c) A steel shaft, 2.0 metre long is required to transmit a torque of 400Nm. If the a maximum shear stress (t) in t

Post by answerhappygod »

A B C A Steel Shaft 2 0 Metre Long Is Required To Transmit A Torque Of 400nm If The A Maximum Shear Stress T In T 1
A B C A Steel Shaft 2 0 Metre Long Is Required To Transmit A Torque Of 400nm If The A Maximum Shear Stress T In T 1 (29.69 KiB) Viewed 18 times

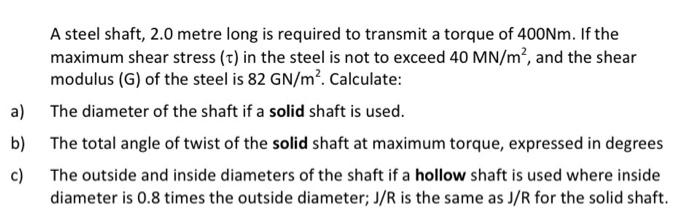

a) b) c) A steel shaft, 2.0 metre long is required to transmit a torque of 400Nm. If the a maximum shear stress (t) in the steel is not to exceed 40 MN/m², and the shear modulus (G) of the steel is 82 GN/m². Calculate: The diameter of the shaft if a solid shaft is used. The total angle of twist of the solid shaft at maximum torque, expressed in degrees The outside and inside diameters of the shaft if a hollow shaft is used where inside diameter is 0.8 times the outside diameter; J/R is the same as J/R for the solid shaft.
