Please box final answer for each letter. Thank you.

[answerhappygod]

Please box final answer for each letter. Thank you.

Please Box Final Answer For Each Letter Thank You 1 (84.61 KiB) Viewed 17 times

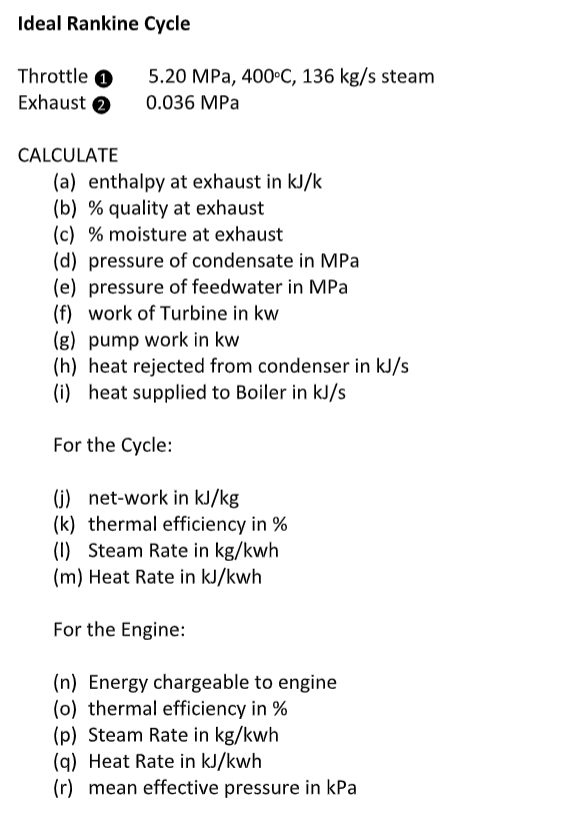

Ideal Rankine Cycle Throttle 0 Exhaust 5.20 MPa, 400°C, 136 kg/s steam 0.036 MPa CALCULATE (a) enthalpy at exhaust in kJ/k (b) % quality at exhaust (c) % moisture at exhaust (d) pressure of condensate in MPa (e) pressure of feedwater in MPa (f) work of Turbine in kw (g) pump work in kw (h) heat rejected from condenser in kJ/s (i) heat supplied to Boiler in kJ/s For the Cycle: (j) net-work in kJ/kg (k) thermal efficiency in % (1) Steam Rate in kg/kwh (m) Heat Rate in kJ/kWh For the Engine: (n) Energy chargeable to engine (o) thermal efficiency in % (p) Steam Rate in kg/kwh (q) Heat Rate in kJ/kwh. (r) mean effective pressure in kPa

Throttle steam pipeline TURBINE W AC GEN Boiler Exhaust Qo (Condenser Qc feedwater pipeline Feedwater B pump 3 Condensate We
