4.6 A differential band brake is shown in figure 4.13. Calculate the position of the pivot in relation to the centre lin
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4.6 A differential band brake is shown in figure 4.13. Calculate the position of the pivot in relation to the centre lin

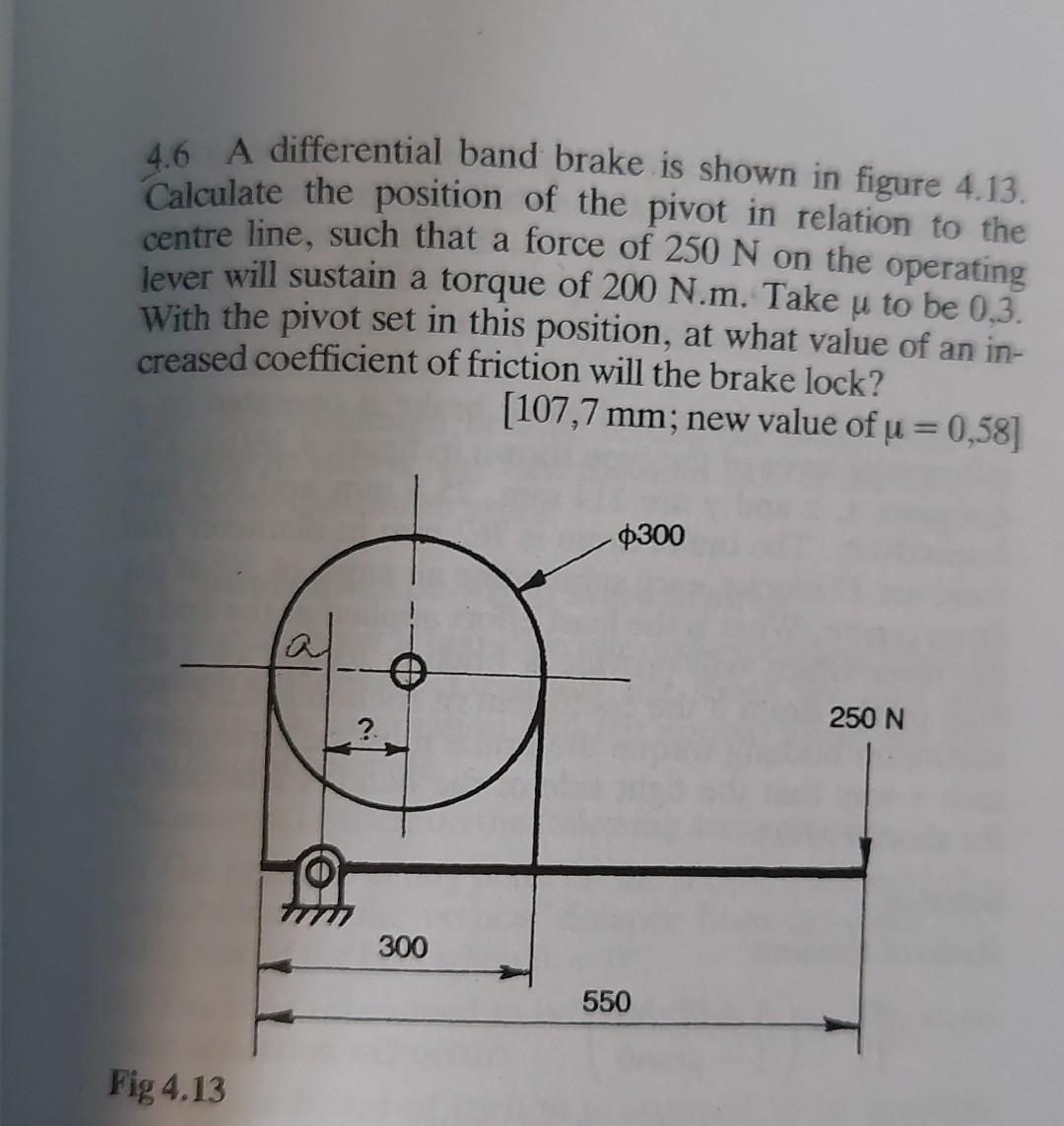

4.6 A differential band brake is shown in figure 4.13. Calculate the position of the pivot in relation to the centre line, such that a force of 250 N on the operating lever will sustain a torque of 200 N.m. Take u to be 0.3. With the pivot set in this position, at what value of an in- creased coefficient of friction will the brake lock? [107,7 mm; new value of u = 0,58] 0300 250 N ? 300 550 Fig 4.13
