For the three degree-of-freedom vibrating system in Fig. Q3, determine the following: a) Flexibility influence coefficie

[answerhappygod]

For The Three Degree Of Freedom Vibrating System In Fig Q3 Determine The Following A Flexibility Influence Coefficie 1 (118.2 KiB) Viewed 22 times

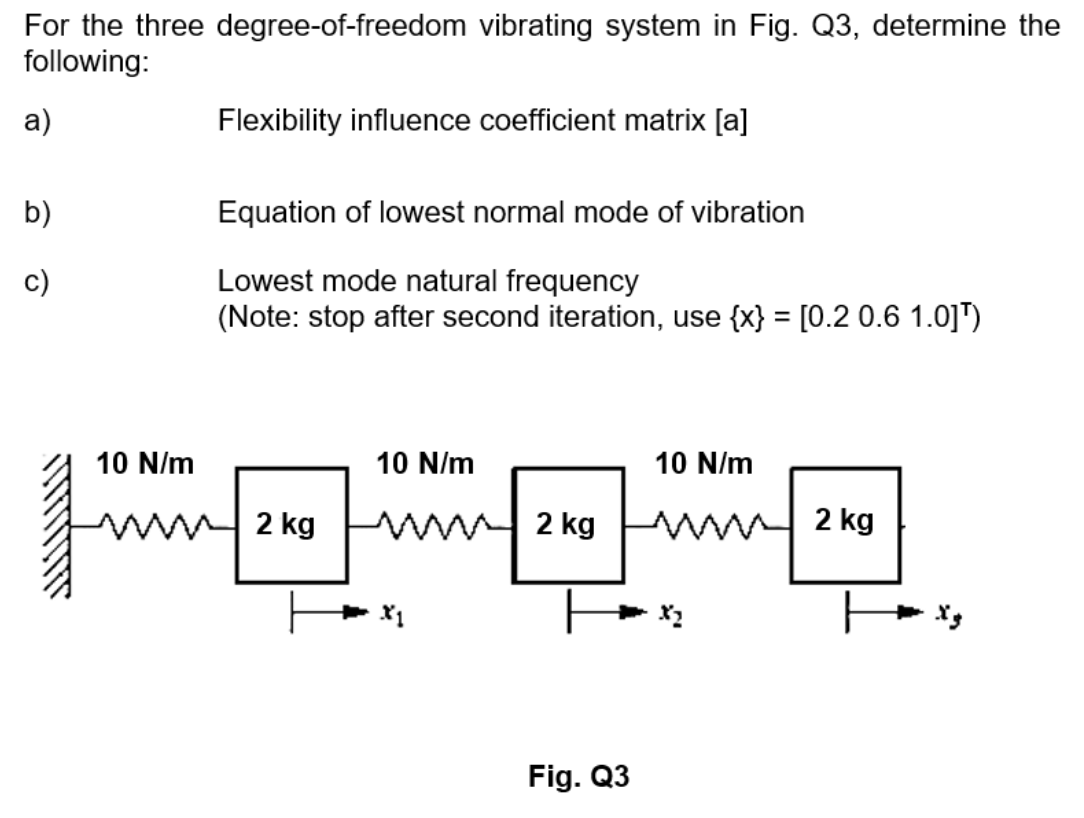

For the three degree-of-freedom vibrating system in Fig. Q3, determine the following: a) Flexibility influence coefficient matrix [a] b) Equation of lowest normal mode of vibration c) Lowest mode natural frequency (Note: stop after second iteration, use {x} = [0.2 0.6 1.0]+) - 10 N/m 10 N/m 10 N/m 2 kg m 2 kg an 2 kg X1 Fig. Q3
